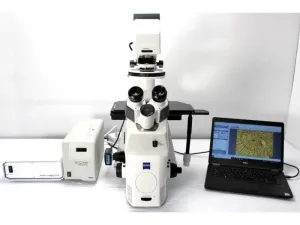

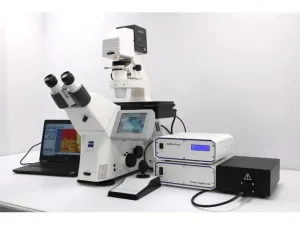

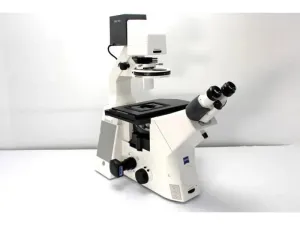

Carl Zeiss Axio Observer Z1

UsedCarl ZeissMicroarray scannersNetherlands
Procurable

Not in stock, available to order through our sourcing team

Not in stock, but we can get it for you

We source this model through our supplier network. Request a quote and we'll come back within one hour.

  1. Request a quote
  2. We confirm price and lead time
  3. You approve, we ship to you
Slide Capacity
100 slides
Slide Dimensions
26 x 76 mm
Objective Magnification (5x)
5x
Objective Numerical Aperture (5x)
0.25
Objective Working Distance (5x)
12.5 mm
Availability
Procurable
Lead time
Confirmed with your quote
All 42 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 42

Brands
Carl Zeiss
New/Used
Used
Slide Capacity
100 slides
Slide Dimensions
26 x 76 mm
Objective Magnification (5x)
5x
Objective Numerical Aperture (5x)
0.25
Objective Working Distance (5x)
12.5 mm
Objective Magnification (10x)
10x
Objective Numerical Aperture (10x)
0.45
Objective Working Distance (10x)
2.1 mm
Objective Magnification (20x)
20x
Objective Numerical Aperture (20x)
0.8
Objective Working Distance (20x)
0.55 mm
Objective Magnification (40x)
40x
Objective Numerical Aperture (40x)
0.95
Objective Working Distance (40x)
0.25 mm
Filter Set for DAPI
F36-513
Filter Set for eGFP
38 HE eGFP shift free (E)
Filter Set for Cy3
43 HE Cy 3 shift free (E)
Filter Set for mPlum
64 HE mPlum shift free (E)
Filter Set for Cy5
50 Cy 5 shift free (E)
Filter Set for Cy7
F46-825
Scanning Stage Dimensions
300 x 100 mm
Usable Focus Range
3 mm
Filter Wheel Switching Time
50 milliseconds
Camera Pixel Resolution (Color)
1600 x 1200 pixels
Camera Pixel Resolution (Monochrome)
2048 x 2048 pixels
Camera Pixel Size (Color)
4.4 µm
Camera Pixel Size (Monochrome)
6.5 µm
Camera Frame Rate (Color)
30 frames/s
Camera Frame Rate (Monochrome)
100 frames/s
Camera Dynamic Range (Color)
12 bit
Camera Dynamic Range (Monochrome)
16 bit
Camera Quantum Efficiency at 600 nm
> 70%
Camera Noise at Minimum EM Gain
1.6 electrons rms
Camera Model (Color)
Hitachi HV-F202SCL
Camera Model (Monochrome)
Hamamatsu Orca Flash 4.0 V2
Light Source for Brightfield
Vis-LED
Light Source for Fluorescence
HXP 120 V (D)
Software
Zen 2
Availability
Procurable
Lead time
Confirmed with your quote

Product description

Automated slide scanner digitizing up to 100 slides, rapid fluorescence imaging, high-res capture, UV-free LED illumination.

The Carl Zeiss Axio Scan.Z1 is an advanced digital slide scanner designed to automate the digitisation of fixed tissue sections and cytologic specimens in both brightfield and fluorescence microscopy. This system enables researchers to convert physical slides into high-quality virtual images swiftly, enhancing analysis and collaboration.

Key features:

  • High-throughput scanning: Capable of digitising up to 100 microscope slides in a single run, streamlining large-scale studies.
  • Rapid fluorescence imaging: Equipped with filter wheels that switch wavelengths in just 50 milliseconds, facilitating efficient multi-channel fluorescence imaging.
  • Superior image quality: Utilises sensitive cameras and optimally corrected optics to produce detailed and accurate digital representations.
  • Sample protection: Incorporates the Colibri.2 UV-free LED light source and a focus finder with oblique illumination to minimise photobleaching and preserve sample integrity.
  • User-friendly software: Operated via ZEISS ZEN imaging software, offering both automated and manual control over scanning parameters, tailored to research workflows.

Applications:

  • Pathology research: Facilitates tissue analysis in studies related to Alzheimer's disease and cancer.
  • Pharmaceutical industry: Supports drug discovery and development processes through efficient sample analysis.
  • Biotechnology: Enhances research in bioprocessing and molecular diagnostics by providing precise digital imaging of biological specimens.

Commonly used in:

  • University laboratories: Supports academic research and education in life sciences.
  • Biomedical research centres: Aids in advanced studies of disease mechanisms and therapeutic interventions.
  • Clinical environments: Assists in diagnostic procedures and pathology assessments.

Introduced in 2013, the Axio Scan.Z1 remains a relevant and widely adopted tool in various scientific and medical fields.
