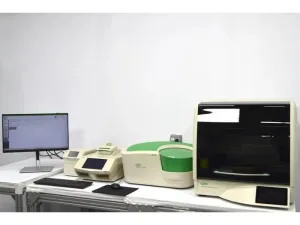

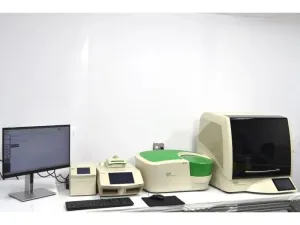

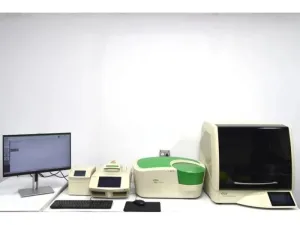

Bio-Rad QX600 AutoDG Droplet Digital PCR System with Automated Droplet Generator, PX1 Plate Sealer, and C1000 Touch Thermal Cycler

The Bio-Rad QX600 AutoDG Droplet Digital PCR System is a state-of-the-art platform designed for high-throughput, automated droplet digital PCR (ddPCR) workflows, widely adopted in molecular diagnostics, bioprocessing, and synthetic biology research. This system combines microfluidic droplet generation, fluorescence-based detection, automated sealing, and precise thermal cycling to ensure reproducible and sensitive quantification of nucleic acids.

Key components include:

• AutoDG Automated Droplet Generator capable of processing 1–96 samples per run and producing ~20,000 uniform droplets per sample, essential for reducing stochastic variation in biotechnological applications such as gene editing validation and molecular cloning workflows.
• QX600 Droplet Reader with 6 detection channels (FAM, HEX, Cy5, Cy5.5, ROX, ATTO 590) enabling multiplexed detection of up to 12 targets per well; utilizes LEDs for sample illumination and avalanche photodiodes for sensitive fluorescence detection, critical for high-precision molecular diagnostics and multiplexed mutation analysis.

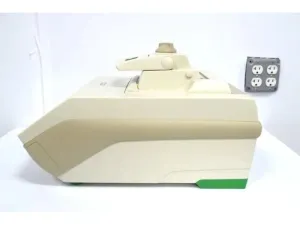

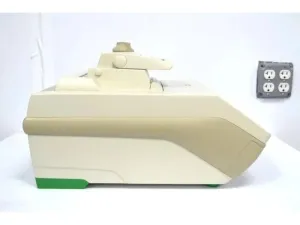

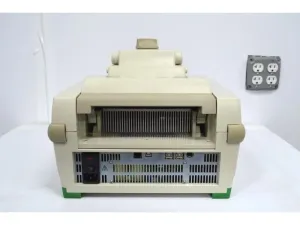

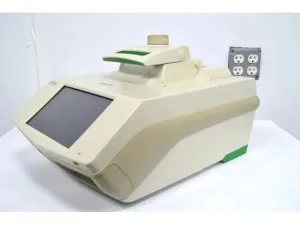

• C1000 Touch Thermal Cycler with a 96-deep well reaction module supporting various tube formats and plates, featuring accurate temperature control (+/- 0.2°C accuracy), a maximum ramp rate of 2.5°C/sec, and extensive on-board memory (>1,000 protocols). This ensures stable thermal environments for consistent PCR amplification in biotechnology and clinical research pipelines.
• PX1 PCR Plate Sealer, providing rapid heat sealing (less than 3 minutes heat-up, temperature range 100–190°C) to minimize sample evaporation and cross-contamination during amplification workflows.

This integrated system supports versatile applications including mutation detection, gene expression profiling, copy number variation (CNV) assessment, next-generation sequencing (NGS) assay validation, drug discovery, multiplexed environmental monitoring, and adeno-associated virus (AAV) genome integrity analysis.

Highlights:

• Automated droplet generation streamlines workflow and reduces hands-on time for high-throughput biomanufacturing labs.
• High droplet uniformity ensures precise absolute quantification, essential in synthetic biology and molecular cloning workflows.
• Integrated droplet sealing and thermocycling optimize reaction consistency and reduce operator-induced variability.
• System supports multiplexed assays critical for advanced molecular diagnostics and bioprocess characterization.
• Robust thermal control and programmable cycling facilitate diverse PCR protocols for clinical and research applications.

This system is a reliable solution for researchers and laboratory professionals requiring rigorous molecular quantification and is backed by warranty and service support. It is well-suited for advanced biotechnology research domains such as gene editing validation, molecular diagnostics, and biopharmaceutical production pipelines.
