Andor iXon 897

UsedAndorConfocal microscopesNetherlands
Procurable

Not in stock, available to order through our sourcing team

Not in stock, but we can get it for you

We source this model through our supplier network. Request a quote and we'll come back within one hour.

  1. Request a quote
  2. We confirm price and lead time
  3. You approve, we ship to you
Sensor Type
Back-illuminated, EX2 dual AR coated
Triggering
Internal, External, External Start, External Exposure, Software Trigger
Digitization
16-bit
Power Supply
100 - 240 VAC, 50 - 60 Hz
Power Consumption
72 W
Availability
Procurable
Lead time
Confirmed with your quote
All 36 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 36

Brands
Andor
New/Used
Used
Sensor Type
Back-illuminated, EX2 dual AR coated
Triggering
Internal, External, External Start, External Exposure, Software Trigger
Digitization
16-bit
Power Supply
100 - 240 VAC, 50 - 60 Hz
Power Consumption
72 W
Voltage (DC)
12 VDC
Active Pixels
512 x 512
Pixel Size
16 x 16 μm
Image Area
8.2 x 8.2 mm
Lens Mount
C-mount
Sensor Diagonal
11.6 mm
Thermostatic Precision
± 0.01°C
Cooling Method
Thermoelectric Cooling (TEC)
Operating Temperature
0 to 30°C
Storage Temperature
-25 to 50°C
PC Interface
USB 2.0
Direct Data Access
Camera Link 3-tap output
Dark Current (e-/pixel/sec) @ -80°C
0.00030
Dark Current (e-/pixel/sec) @ Max Cooling
0.00015
Spurious Background (events/pix) @ 1000x gain / -85°C
0.0018
Active Area Pixel Well Depth
180,000 e-
Gain Register Pixel Well Depth
800,000 e-
Linear Absolute Electron Multiplier Gain
1 – 1000 times via RealGain™
Linearity
Better than 99.9%
Vertical Clock Speed
0.3 to 3.33 μs
Timestamp Accuracy
10 ns
Frame Rate (Full Frame)
56 fps
Frame Rate (128 x 128 Crop Mode)
595 fps
Readout Rate (EM Amplifier)
17, 10, 5 & 1 MHz
Readout Rate (Conventional Amplifier)
3, 1 & 0.08 MHz
Pixel Well Depth
80,000 e-
Weight
3.7 kg
Availability
Procurable
Lead time
Confirmed with your quote

Product description

EMCCD camera with high frame rates, -100°C cooling, >90% QE, and versatile readout for low-light imaging.

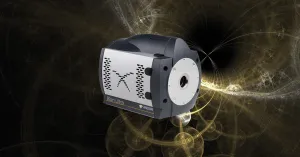

The iXon Ultra 897 is a high-performance Electron Multiplying CCD (EMCCD) camera designed to deliver exceptional sensitivity and speed for low-light imaging applications. Engineered by Andor Technology, this instrument is ideal for capturing single-photon events with high temporal resolution, making it a valuable tool in advanced scientific research.

Key features include:

  • High frame rates: Overclocked to 17 MHz readout, achieving up to 56 frames per second at full resolution.
  • Superior sensitivity: Back-illuminated sensor with >90% quantum efficiency, ensuring optimal signal-to-noise ratio in low-light conditions.
  • Deep cooling: Thermoelectric cooling down to -100°C, significantly reducing dark current and enhancing image quality.
  • Optically centered crop mode: Enables high-speed imaging from a centrally positioned region of interest, reaching up to 569 frames per second with a 128 x 128 pixel area.
  • Versatile readout modes: Supports both EMCCD and conventional CCD readout, providing flexibility for various experimental requirements.

This camera is widely utilized in scientific fields such as super-resolution microscopy, single-molecule detection, ion signalling, cell motility studies, and adaptive optics. Its exceptional performance makes it particularly suitable for applications in biotechnology, including live-cell imaging, fluorescence microscopy, and biomedical research.

Commonly employed in university laboratories, biomedical research centres, and clinical environments, the iXon Ultra 897 has been a trusted instrument since its launch in 2012. Its enduring relevance is a testament to Andor Technology's commitment to innovation and quality in scientific imaging solutions.
