Nikon A1R

UsedNikonConfocal microscopesNetherlands
Procurable

Not in stock, available to order through our sourcing team

Not in stock, but we can get it for you

We source this model through our supplier network. Request a quote and we'll come back within one hour.

  1. Request a quote
  2. We confirm price and lead time
  3. You approve, we ship to you
Field of View (FOV)
25 mm (square inscribed in a 25 mm-diameter circle)
Maximum Image Resolution
4096 x 4096 pixels
Scanning Speed (Galvano Scanner)
2 fps (512 x 512 pixels, bi-directional); 24 fps (512 x 32 pixels, bi-directional)
Scanning Speed (Resonant Scanner)
30 fps (512 x 512 pixels); 720 fps (512 x 16 pixels)
Pinhole Size
12-256 μm variable
Availability
Procurable
Lead time
Confirmed with your quote
All 25 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 25

Brands
Nikon
New/Used
Used
Field of View (FOV)
25 mm (square inscribed in a 25 mm-diameter circle)
Maximum Image Resolution
4096 x 4096 pixels
Scanning Speed (Galvano Scanner)
2 fps (512 x 512 pixels, bi-directional); 24 fps (512 x 32 pixels, bi-directional)
Scanning Speed (Resonant Scanner)
30 fps (512 x 512 pixels); 720 fps (512 x 16 pixels)
Pinhole Size
12-256 μm variable
Laser Wavelengths
405 nm, 488 nm, 561 nm, 640 nm
Detector Type
4 standard PMTs; 2 GaAsP detectors
Control Computer Operating System
Windows 10 Pro 64bit, English or Japanese version, OS Version 1709; Windows 7 Professional, 64bit, SP1 English or Japanese version, Windows Update KB3118401 or later
Control Computer CPU
Intel Xeon W-2125 (4.0GHz, quad core, 8.25 MB, 2666 MHz) or higher
Control Computer RAM
32GB or 64GB
Control Computer Graphics
NVIDIA Quadro P600 or higher (NIS-Elements C-ER: NVIDIA Quadro P4000)
Control Computer Extension Slots
Two PCI Express 3.0 (x16) slots (one slot to be used for graphics); One PCI Express 3.0 (x8) slot; Two PCI Express 2.0 (x4) slots
Control Computer LAN Ports
10/100/1000 Network/Interface x 2 (for connection to controller, for connection to external LAN)
Control Computer Monitor Resolution
1600 x 1200 or higher resolution, dual monitor configuration recommended
Spectral Detection Range
400 - 750 nm
Spectral Detection Resolution
10 nm
Spectral Detection Channels
32 channels
Environmental Chamber Temperature Control
37°C
Environmental Chamber CO₂ Control
5% CO₂
Environmental Chamber Humidity Control
70% RH or less (non-condensing)
Compatible Microscopes
ECLIPSE Ti2-E inverted microscope; ECLIPSE FN1 fixed stage microscope; ECLIPSE Ni-E upright microscope
Availability
Procurable
Lead time
Confirmed with your quote

Product description

Confocal laser scanning microscope with hybrid scanners, GaAsP detectors, and environmental control for live-cell imaging.

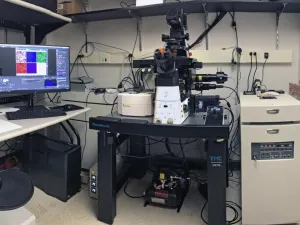

The Nikon A1R is an advanced confocal laser scanning microscope designed for high-resolution, high-speed imaging of live cells and tissues. Released in 2008, this system integrates seamlessly with Nikon's Ti series inverted microscopes, providing researchers with a versatile platform for dynamic biological studies.

Key features include:

  • Hybrid scanning system: Combines a galvanometer scanner for high-resolution imaging (up to 4096 x 4096 pixels) with a resonant scanner capable of capturing up to 30 frames per second at 512 x 512 pixels, facilitating real-time observation of rapid cellular events.
  • High-speed imaging: The resonant scanner enables imaging at up to 720 frames per second (512 x 16 pixels), ideal for capturing fast biological processes such as ion signalling.
  • Enhanced sensitivity: Equipped with high-sensitivity GaAsP detectors, the system offers improved signal-to-noise ratios, allowing for clearer imaging of faint fluorescent signals.
  • Live-cell imaging support: Features an environmental chamber with temperature, CO₂, and humidity control, ensuring optimal conditions for prolonged live-cell studies.
  • Spectral imaging capabilities: Incorporates a spectral detector for precise separation of overlapping fluorescence signals, enhancing multi-colour imaging applications.

The Nikon A1R is widely utilised in various scientific fields, including cell biology, neuroscience, cancer research, and developmental biology. Its versatility makes it a valuable tool in university laboratories, biomedical research centres, and clinical research facilities. As of 2025, the Nikon A1R remains a relevant and reliable instrument in the scientific community, continuing to support cutting-edge research across multiple disciplines.
