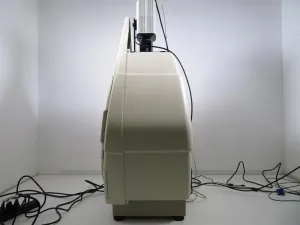

Bio-Rad ChemiDoc XRS+

UsedBio-RadMolecular imaging devicesNetherlands
Procurable

Not in stock, available to order through our sourcing team

Not in stock, but we can get it for you

We source this model through our supplier network. Request a quote and we'll come back within one hour.

  1. Request a quote
  2. We confirm price and lead time
  3. You approve, we ship to you
Maximum sample size
28 x 36 cm
Maximum image area
26 x 35 cm
Detector
Supercooled CCD
Pixel size
6.45 x 6.45 µm
Dynamic range
>4.0 orders of magnitude
Availability
Procurable
Lead time
Confirmed with your quote
All 22 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 22

Brands
Bio-Rad
New/Used
Used
Maximum sample size
28 x 36 cm
Maximum image area
26 x 35 cm
Detector
Supercooled CCD
Pixel size
6.45 x 6.45 µm
Dynamic range
>4.0 orders of magnitude
Pixel density (gray levels)
65,535
Dynamic flat fielding
Application specific, for all applications
Excitation source
Epi-white light and trans-UV (302 nm) are standard; optional 365 nm lamp available
Illumination control modes
5 modes (trans-UV, epi-white, and no illumination for chemiluminescence are standard); trans white and XcitaBlue conversion screens are optional
Cooling system
Peltier
Filter selector positions
3 positions (2 for filters, 1 without filter, for chemiluminescence)
Emission filters included
1 included (standard), 3 optional
Operating voltage
110/115/230 V AC nominal
Camera cooling temperature
-30°C controlled
Operating temperature
10–28°C (21°C recommended)
Operating humidity
<70% noncondensing
Instrument dimensions
36 x 60 x 96 cm
Instrument weight
32 kg
Availability
Procurable
Lead time
Confirmed with your quote

Product description

High-sensitivity CCD imager supporting chemiluminescence, fluorescence, and colorimetry with automated capture and analysis.

The ChemiDoc XRS+ is a high-performance imaging system designed for the rapid and accurate detection of chemiluminescent, fluorescent, and colorimetric samples. This instrument is widely utilised in molecular biology and biochemistry laboratories for applications such as Western blotting, gel electrophoresis, and nucleic acid analysis.

Key features include:

  • High-sensitivity CCD camera: A supercooled 16-bit CCD camera ensures the detection of faint signals, enhancing image clarity.
  • Versatile detection methods: Supports chemiluminescence, fluorescence, colorimetry, densitometry, and chemifluorescence, accommodating a broad range of experimental needs.
  • Automated image capture and analysis: Controlled by Image Lab™ software, the system offers fast, integrated, and automated workflows, reducing manual intervention and increasing reproducibility.
  • Wide sample compatibility: Accommodates various sample types, from large handcast polyacrylamide gels to small ReadyAgarose™ gels and different blot formats.
  • Enhanced data accuracy: Features such as dynamic flat fielding and autofocus ensure images are consistently in focus and free from artifacts, providing reliable quantitative data.

This imaging system is extensively employed in university laboratories, biomedical research centres, and clinical diagnostics settings, facilitating research in fields like proteomics, genomics, and cell biology. By eliminating the need for traditional X-ray film, the ChemiDoc XRS+ offers a cost-effective and efficient solution for obtaining publication-quality results.

First introduced in the mid-2000s, the ChemiDoc XRS+ remains a relevant and reliable tool in contemporary research environments.
