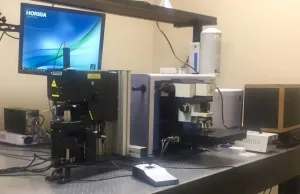

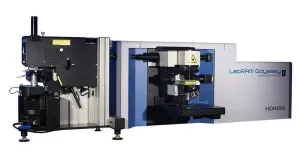

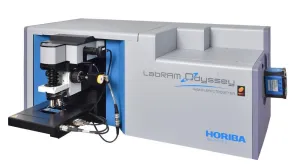

HORIBA LabRAM

UsedHORIBAConfocal microscopesNetherlands
Procurable

Not in stock, available to order through our sourcing team

Not in stock, but we can get it for you

We source this model through our supplier network. Request a quote and we'll come back within one hour.

  1. Request a quote
  2. We confirm price and lead time
  3. You approve, we ship to you
Dimensions (W x D x H)
900 x 800 x 810 mm
Spectral Resolution at 532 nm excitation
≤ 0.6 cm⁻¹ with 1800 gr/mm grating
Spectral Resolution at 633 nm excitation
≤ 0.4 cm⁻¹ with 1800 gr/mm grating
Spectral Resolution at 785 nm excitation
≤ 0.2 cm⁻¹ with 1800 gr/mm grating
Temperature Range
-25°C to 120°C
Availability
Procurable
Lead time
Confirmed with your quote
All 25 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 25

Brands
HORIBA
New/Used
Used
Dimensions (W x D x H)
900 x 800 x 810 mm
Weight
120 kg
Spectral Resolution at 532 nm excitation
≤ 0.6 cm⁻¹ with 1800 gr/mm grating
Spectral Resolution at 633 nm excitation
≤ 0.4 cm⁻¹ with 1800 gr/mm grating
Spectral Resolution at 785 nm excitation
≤ 0.2 cm⁻¹ with 1800 gr/mm grating
Temperature Range
-25°C to 120°C
Heating/Cooling Rates
0.1-20°C/min
Spectrometer Focal Length
800 mm
Number of Gratings
Unlimited
Number of Lasers
Up to 6 motorized
Laser Wavelengths
266 nm, 325 nm, 355 nm, 405 nm, 458 nm, 473 nm, 532 nm, 633 nm, 660 nm, 785 nm, 1064 nm
Detector
SynapsePlus BIDD CCD detector, QE~90% in the range 400-800 nm, QE above 50% at 950 nm
Laser Power
< 150 mW
Laser Safety Class
Class IIIb
Laser Safety Class with Optional CDRH
Class 1
Sample Stage Travel Range
100 x 80 mm
Sample Stage Z-Axis Step Size
0.5 µm
Spectral Range
200 nm - 2200 nm
Spectral Resolution at 244 nm excitation
≤ 1.5 cm⁻¹ with 3600 gr/mm grating
Ultra-Low Frequency Module
< 10 cm⁻¹ measured on sulfur
Ultra-Low Frequency Module Availability
Available for 473, 532, 633, and 785 nm laser excitations
Availability
Procurable
Lead time
Confirmed with your quote

Product description

The HORIBA LabRAM 6430 is a high-performance Raman microscope designed for rapid, non-destructive chemical microanalysis and high-resolution Raman imaging. This instrument is widely used in various scientific fields, including biotechnology, materials science, and pharmaceuticals, providing detailed molecular information essential for advanced research.

Key features:

  • Multi-laser capability: Supports multiple excitation wavelengths, facilitating versatile sample analysis.
  • True confocal microscopy: Offers high spatial resolution imaging with automated mapping stages and comprehensive visualization optics.
  • High-performance Raman spectrometer: Delivers exceptional spectral resolution with multiple gratings and automated switching, enabling wide spectral range analysis for both Raman and photoluminescence studies.
  • Ultrafast confocal imaging: Incorporates DuoScan imaging technology and the SWIFT module for rapid, high-resolution confocal Raman mapping, even on a macro scale.
  • Integration with Tip-Enhanced Raman Spectroscopy (TERS): Achieves molecular-level spatial resolution by combining scanning probe microscopy with Raman spectroscopy, enhancing signal sensitivity and spatial resolution.

Applications:

  • Biotechnology: Essential for molecular diagnostics, gene editing research, and synthetic biology applications.
  • Materials science: Characterization of nanomaterials, semiconductors, and polymers.
  • Pharmaceuticals: Analysis of compound distribution in tablets, polymorphic forms, and crystallinity.
  • Geology and mineralogy: Identification of minerals and phase distribution in rock sections.
  • Life sciences: Single-cell analysis, disease diagnosis, and drug-cell interactions.

The LabRAM 6430 is commonly utilized in university laboratories, biomedical research centres, and pharmaceutical companies, supporting a wide range of scientific investigations. Since its release, this system has remained relevant and continues to be a valuable tool in cutting-edge research.
