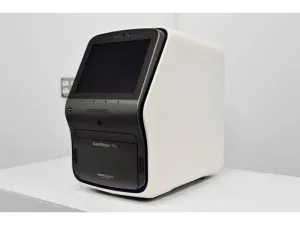

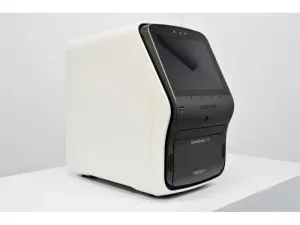

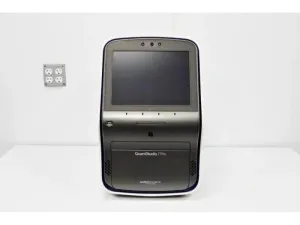

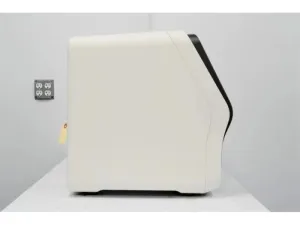

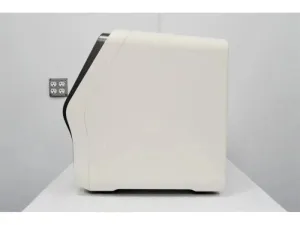

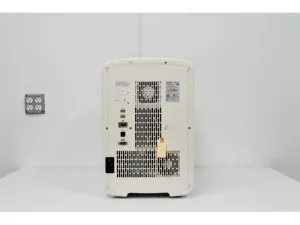

Thermo Scientific Applied Biosystems QuantStudio 7 Pro 384-Well Real-Time PCR System

The Thermo Scientific Applied Biosystems QuantStudio 7 Pro Real-Time PCR System is a high-throughput, precise nucleic acid quantification instrument widely used in biotechnology, molecular diagnostics, and gene expression research. Engineered for flexibility and efficiency, it features an interchangeable thermal block format with a 384-well block as standard, supporting reaction volumes from 5 to 20 µL.

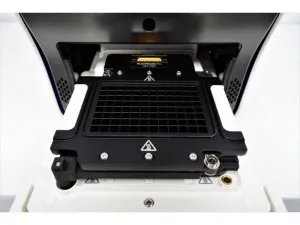

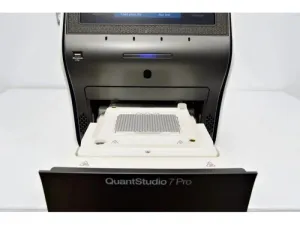

• Sample Capacity & Format: 384-well block with heated cover ensuring uniform temperature control (uniformity ±0.4°C) across the block, with a temperature range of 4–99.9°C.
• Thermal Cycling Performance: Maximum ramp rate of 6.0°C/sec and average sample ramp rate of 2.92°C/sec, powered by Peltier heating and cooling technology for rapid and precise cycling.
• Optical and Detection System: Bright white LED excitation light source, 21 filter/color combinations, excitation/emission range from 450–600 nm / 500–640 nm, enabling multiplex detection of up to 5 or 6 fluorescent targets simultaneously. Detection uses CMOS technology with whole-plate imaging, supporting sensitivity down to 1 copy and dynamic range over 10 orders of magnitude.
• Dye Compatibility: Compatible with a broad range of dyes including FAM, SYBR Green I, VIC, JOE, HEX, TET, ABY, NED, TAMRA, Cy3, JUN, ROX, Texas Red, Mustang Purple, Cy5, LIZ, and Cy5.5, making it essential for a variety of qPCR and gene expression assays.

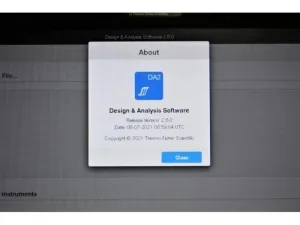

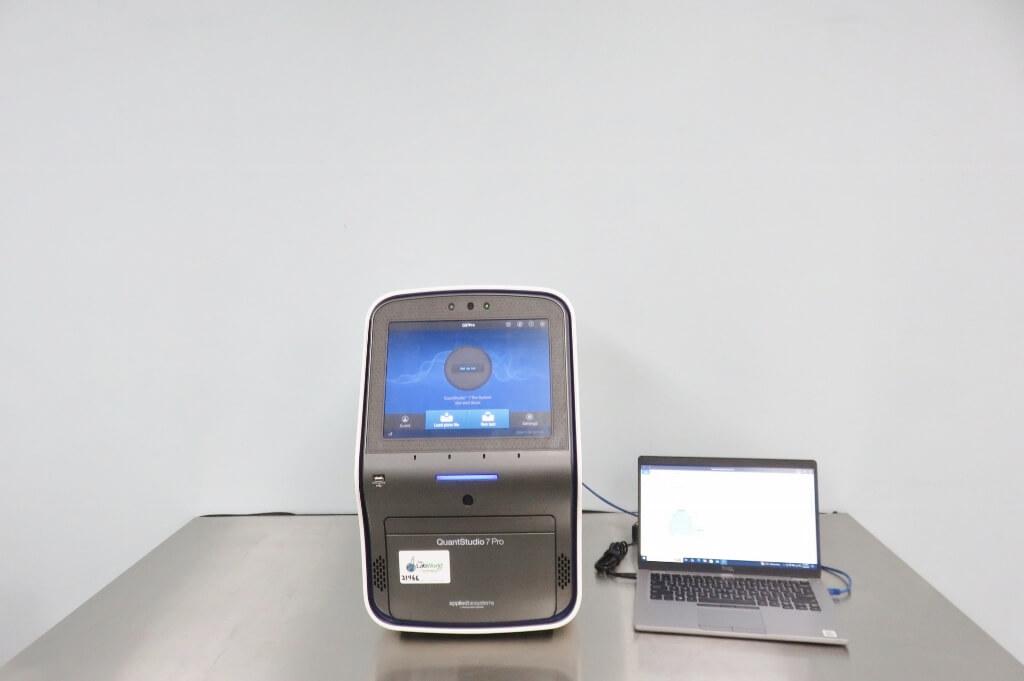

• Software and User Interface: Includes a laptop with Design & Analysis software and a user-friendly touchscreen interface for customizable experiment setup and data analysis.
• Applications: Suitable for quantitative PCR (qPCR), high-resolution melting (HRM) analysis, pathogen detection, gene expression profiling, microRNA and methylation analysis, genotyping, mutation scanning, CNV analysis, and validation of next-generation sequencing (NGS) data. Critical in biotechnology workflows like molecular diagnostics, synthetic biology, bioprocessing, and biopharmaceutical production.
• Physical Dimensions & Weight: 52.5 x 33.8 x 54.7 cm; 38 kg.

*Customization available* with alternative block formats: 96-well 0.1 mL fast block or 96-well 0.2 mL standard block, providing flexibility across diverse experimental needs.

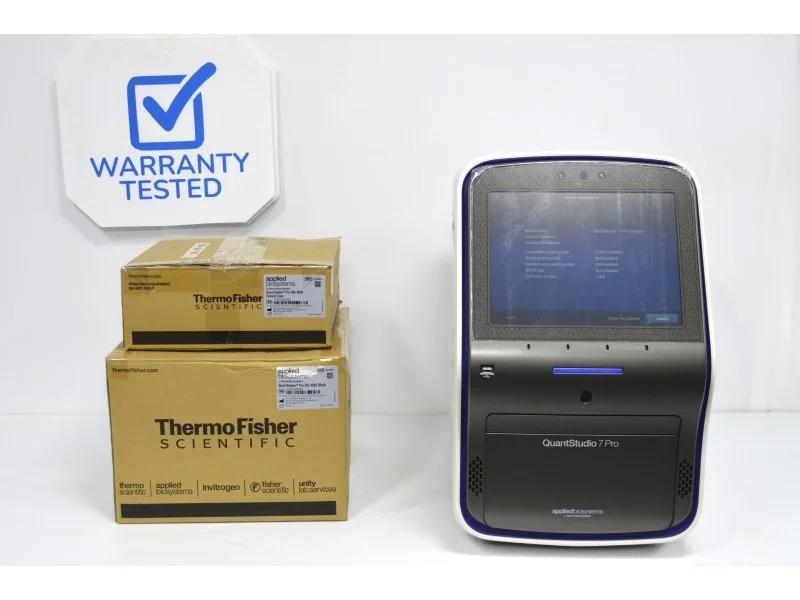

This system undergoes rigorous serviced calibration using the QuantStudio Spectral Dye Calibration Kit and preventative maintenance before shipping, guaranteeing full operational functionality. Optional on-site installation and training support are provided for regional customers, with remote training available internationally.

The QuantStudio 7 Pro's combination of rapid thermal cycling, advanced optical multiplexing capabilities, and high-throughput 384-well format makes it widely adopted in synthetic biology research and molecular diagnostics, supporting critical biotechnology applications including gene editing validation and molecular cloning workflows.

This instrument is ideal for laboratories requiring robust, sensitive, and efficient real-time PCR instrumentation to accelerate biomanufacturing and research programs in clinical diagnostics, biomedical engineering, and biotechnology sectors.
