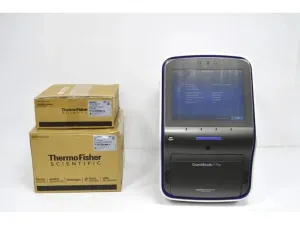

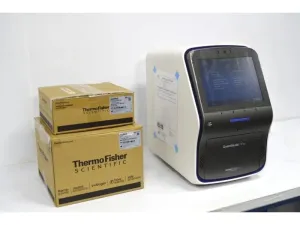

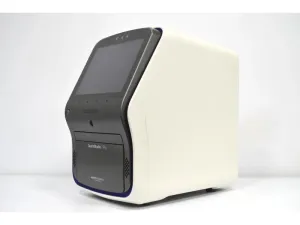

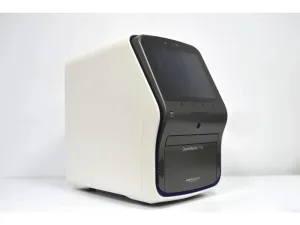

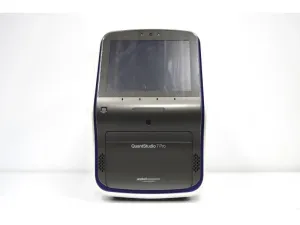

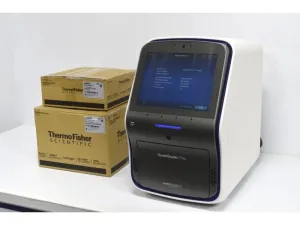

Thermo Scientific Applied Biosystems QuantStudio 7 Pro Real-Time PCR System with 384-Well Block

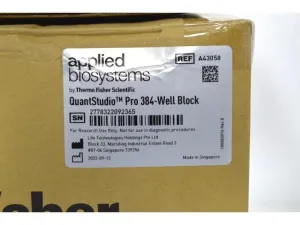

The Thermo Scientific Applied Biosystems QuantStudio 7 Pro Real-Time PCR system is a sophisticated instrument designed for high-throughput quantitative PCR (qPCR) applications critical to molecular diagnostics, gene expression analysis, and biotechnological research. This model features a 384-well interchangeable block format (P/N: A43058) enabling large sample capacity of up to 384 reactions with reaction volumes between 5–20 µL, optimized for throughput and efficiency in bioprocessing and synthetic biology workflows.

Key technical specifications include:

• Thermal cycling with rapid ramp rates: maximum 6.0°C/sec and average 2.92°C/sec, ensuring fast turnaround times (<30 minutes run time).
• Precise temperature uniformity of ±0.4°C across a broad range of 4–99.9°C using Peltier heating and cooling technology.
• Advanced optical detection with a bright white LED excitation source covering excitation/emission ranges from 450–600 nm / 500–640 nm and 21 filter/color combinations, supporting fluorescent dye multiplexing of up to 5–6 targets simultaneously.
• Detection via CMOS whole-plate imaging technology for sensitive and accurate quantification, capable of detecting down to single-copy DNA targets with a dynamic range spanning 10 orders of magnitude and 1.5-fold resolution sensitivity.
• Compatible with a wide array of dye chemistries: FAM, SYBR Green I, VIC, JOE, HEX, TET, ABY, NED, TAMRA, Cy3, JUN, ROX, Texas Red, Mustang Purple, Cy5, LIZ, Cy5.5, making it versatile for applications including multiplex gene expression, pathogen detection, microRNA analysis, and biomarker validation.

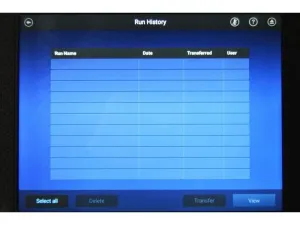

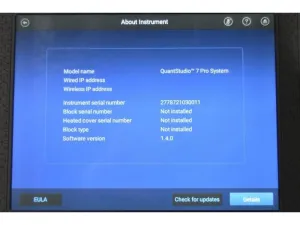

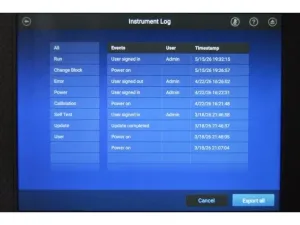

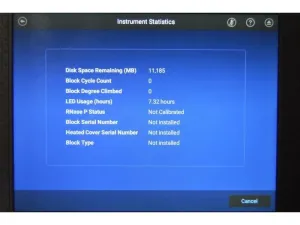

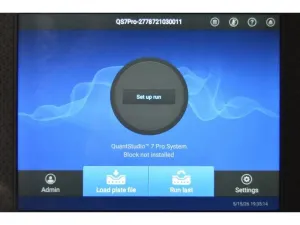

• User interface features a touchscreen with customizable settings to streamline assay design, data acquisition, and analysis workflows widely adopted in clinical diagnostics and molecular biology laboratories.

Additional accessory components:

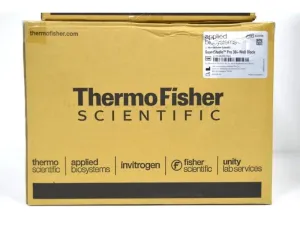

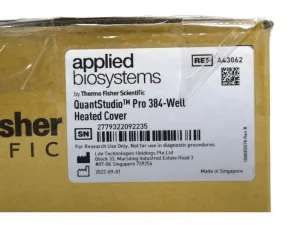

• QuantStudio Pro 384-Well Heated Cover (P/N: A43062) for optimal reaction conditions.
• Preloaded laptop with Design & Analysis software to facilitate experimental setup and post-run analysis.

This unit is suitable for extensive applications such as qPCR, high-resolution melting (HRM) analysis, methylation studies, drug resistance profiling, genotyping, and validation of next-generation sequencing (NGS) data, making it essential for biomanufacturing, molecular cloning workflows, and advanced gene-editing research.

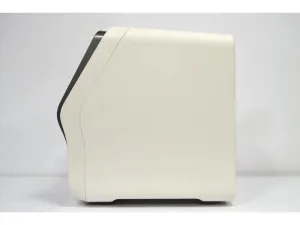

The system supports interchangeable block formats, including 96-well variants, offering flexibility for various experimental throughput requirements. Dimensions are 52.5 x 33.8 x 54.7 cm, weighing 38 kg.

This product is supplied brand new, backed by a 120-day US warranty and optional extension to one year, with technical sales consultation, installation, and remote training available. It is widely adopted in biotechnology and biomedical engineering for its robust performance and reliability in high-throughput molecular diagnostics pipelines.
