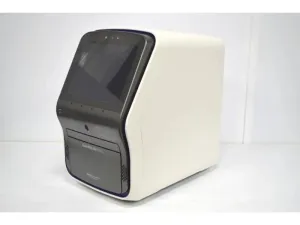

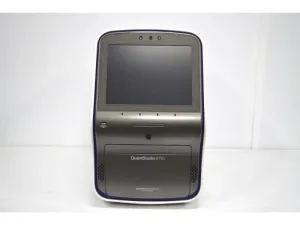

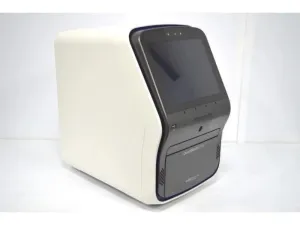

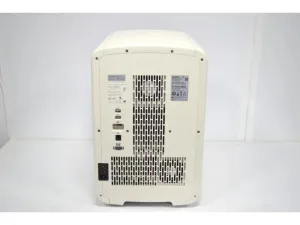

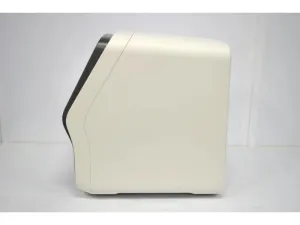

Thermo Fisher ABI QuantStudio 6 Pro Real-Time PCR System with 384-Well Block

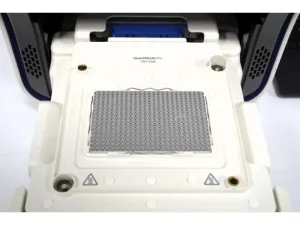

The Thermo Fisher ABI QuantStudio 6 Pro Real-Time PCR System is a high-performance instrument designed for quantitative PCR and advanced molecular diagnostics. Featuring a *384-well interchangeable thermocycler block* with a reaction volume range of *5–20 µL*, it enables high-throughput sample processing essential for modern biotechnology and clinical research workflows.

Key technical specifications include:

• Thermal cycling with rapid ramp rates up to *6.0°C/sec* (average 2.92°C/sec)
• Uniform temperature control within *0.4°C* over a broad range (*4–99.9°C*), suitable for precise amplification and melting analyses
• Advanced *Peltier-based heating/cooling* ensuring reliable temperature modulation with run times under *30 minutes*
• Multiplex fluorescence detection supporting *up to 5 or 6 targets* simultaneously via *five filter combinations* with excitation/emission ranges of *450–600 nm / 500–640 nm*
• Optical detection employs *CMOS technology* with whole-plate imaging, enhancing sensitivity and quantification accuracy, with dynamic range spanning *10 orders of magnitude* and ability to detect as low as *1 copy* of target DNA
• Dye compatibility includes a broad panel of standard reporter dyes (FAM, SYBR Green I, VIC, TET, ROX, Cy5, and others), ensuring versatility for diverse assay designs

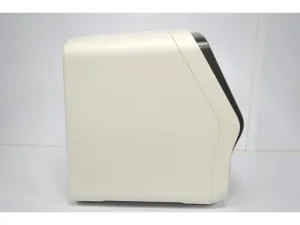

• Physical dimensions: *52.5 x 33.8 x 54.7 cm*; weight approximately *38 kg*

This instrument is widely adopted in *biotechnology, molecular biology research*, and *clinical diagnostics*, supporting applications such as *gene expression analysis, pathogen detection, drug resistance studies, microRNA profiling, genotyping, methylation assays*, and *NGS validation*. Its multiplexing and high-throughput capacity make it *critical for bioprocessing pipelines and synthetic biology workflows* requiring precise, reproducible quantitative PCR data.

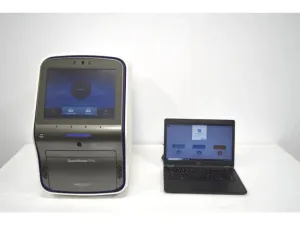

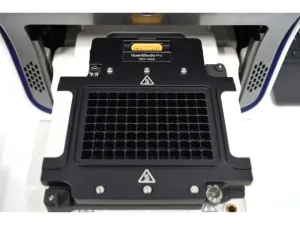

Additional configurations available include interchangeable blocks for *96-well fast or standard formats*, enhancing flexibility for various experimental volumes. The system comes with pre-installed *Design & Analysis software*, supporting data acquisition, analysis, and instrument control.

Comprehensive testing, spectral calibration, and preventative maintenance assure optimal performance, supported by *remote setup, user training, and warranty options* for reliable operation in demanding research or clinical environments.

This QuantStudio 6 Pro model exemplifies high-throughput real-time PCR technology critical in *molecular diagnostics* and *biomanufacturing quality control*, enabling researchers and clinicians to perform sensitive, multiplexed assays with speed and precision.
