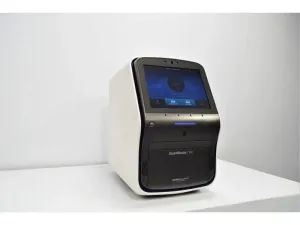

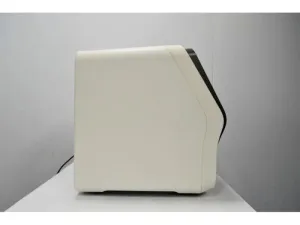

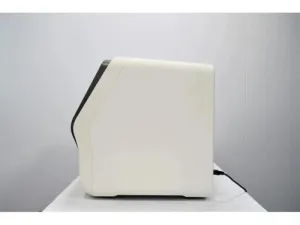

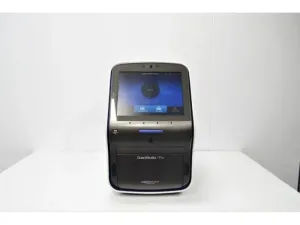

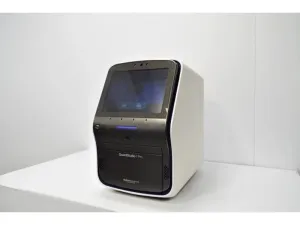

Thermo Fisher ABI QuantStudio 7 Pro Real-Time PCR System with 96-Well VeriFlex Block

The Thermo Fisher ABI QuantStudio 7 Pro is an advanced real-time PCR system designed for molecular diagnostics, gene expression analysis, synthetic biology, and biotechnology research applications requiring high precision and throughput. Featuring a 96-well 0.2 mL VeriFlex thermal cycler block, this instrument offers independent temperature zones (3 or 6) for precise thermal cycling, enabling multiplex qPCR, methylation studies, and high-resolution melt (HRM) analysis critical in biopharmaceutical production pipelines.

Key Technical Specifications:

• Sample capacity: 96 wells with 0.2 mL reaction volume (range 10–100 µL)
• Thermal ramping: Max ramp rate of 6.5°C/sec, average 3.66°C/sec
• Temperature uniformity: ±0.4°C over 4–99.9°C range
• Multiplexing: Up to 5 or 6 targets with 21 filter combinations across 5–6 optical channels
• Fluorescence detection: White LED excitation (450–600 nm), CMOS camera for whole-plate imaging
• Dye compatibility: Covers standard dyes such as FAM, SYBR Green I, VIC, JOE, HEX, TAMRA, Cy5, and more
• Interchangeable blocks: Options for 96-well 0.1 mL fast block, 96-well 0.2 mL standard block, 384-well block, and TaqMan Array Cards for versatile throughput

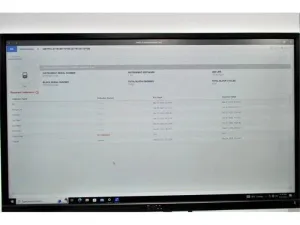

• Software & Interface: Includes Design & Analysis v2.6 software on desktop PC; supports 21 CFR Part 11 compliance, cloud-based data management, Instrument Connect app for remote operation, and a 12-inch touchscreen
• Advanced features: Facial authentication, RFID reader, voice-command control, onboard 10 GB memory, and barcode reader compatibility
• Dimensions & Weight: 52.5 x 33.8 x 54.7 cm; 38 kg

Applications:

Widely adopted in biotechnology, clinical diagnostics, and genomics, this system supports:

• Quantitative PCR (qPCR) including gene expression, SNP genotyping, and copy number variation analysis
• High-Resolution Melting (HRM) for mutation scanning and polymorphism detection
• Pathogen detection and viral load testing essential for infectious disease research
• Methylation analysis and epigenetics studies relevant to biomarker discovery
• Drug resistance and microRNA profiling crucial in molecular medicine
• Validation of next-generation sequencing (NGS) data
• Protein-DNA interaction studies such as ChIP-qPCR

Technical Strengths:

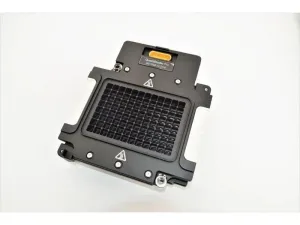

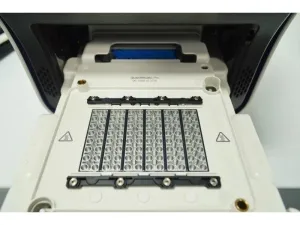

• VeriFlex™ block technology permits different temperature zones within a single run, enhancing experiment flexibility for complex molecular biology workflows essential in gene editing and synthetic biology projects.
• High sensitivity with 1.5-fold resolution, detecting down to one copy target, enabling reliable molecular diagnostics and bioprocessing quality control.
• Compact footprint and robust reproducibility facilitate integration into busy biomanufacturing and research laboratories.

The QuantStudio 7 Pro system comes ready with power and communication cables, a desktop PC, and fully serviced hardware including current calibration and preventative maintenance. Warranty options and remote or onsite training services ensure streamlined adoption in university, clinical, or industrial labs.

This high-performance Real-Time PCR platform combines versatility, precise thermal control, and advanced fluorescence detection, making it critical in biopharmaceutical production pipelines, molecular cloning workflows, and state-of-the-art biotechnology research environments.
