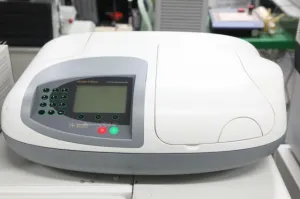

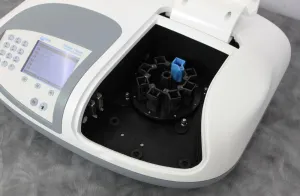

Ultrospec 2100 pro Spectrophotometer

The Ultrospec™ 2100 pro UV-Visible spectrophotometer has an integral high resolution graphics display and easy-to-use software making it ideal for use in the modern laboratory.

Technical specifications Wavelength range 190–900 nm Monochromator 1200 lines/mm Aberration corrected concave grating Maximum scanning speed 3000 nm/minute Spectral bandwidth < 3 nm Wavelength accuracy ± 1 nm Wavelength reproducibility ± 0.5 nm Light source xenon lamp Detectors two silicon photodiodes Photometric range - 3.000 to 3.000 A, 0.01 to 9999 concentration units, 0.1 to 200 % T Photometric accuracy ± 0.5 % or ± 0.003 A to 3.000 A at 546 nm, whichever is the larger Photometric reproducibility within 0.5 % of absorbance value to 3.000 A at 546 nm Stability ± 0.001 A per hour at 340 nm at 0 A Stray light <0.05 % T at 220 nm using NaI and <0.05 % T at 340 nm using NaNO2 Digital output 9 pin serial and Centronics parallel Sample compartment size 210 x 140 x 80mm Dimensions 510 x 350 x 160mm Weight 13kg Power requirements 100–240 V AC ± 10 %, 50/60 Hz,
