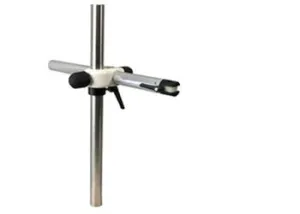

SMS16A-TM Stereo Microscope Boom Stand with Table Mount, 15.75" Post Height

The SMS16A-TM boom stand is designed for stereo microscopes in routine inspections of large samples where continuous horizontal movement is unnecessary.

Technical Features:

• Large precision ground 38mm (1.47") shafting for smooth, stable operation
• Anti-corrosion construction combining stainless steel, anodized aluminum, plated steel, and catalyzed epoxy solid aluminum cross slider with nylon bearing surfaces
• Industry standard 5/8" bonder mount socket compatible with standard stereo microscope focus mounts
• Compatible with non-bonder stereo microscope focus mounts and cameras via tilting/non-tilting adapters supporting 1/4-20" threaded mounts
• Standard 15.75" tall vertical pole and 20.5" long horizontal pole; custom lengths available
• Table Mount (SPOT Imaging TM1) designed for 1.0" or 25mm center-to-center tapped hole patterns typical on vibration isolation tables
• TM1 mount constructed from solid 300 series stainless steel for corrosion resistance
• Includes top mounting plate, bottom backing plate, three sets of 1/4-20 mounting fasteners (sizes: 7/8", 2", 2-3/4"), and one set of M6 x 20mm mounting fasteners
• Mounting hole accepts a 3/8"-16 socket head cap screw

This robust and value-priced boom stand offers precision, durability, and versatility for professional laboratory stereo microscopy applications.
