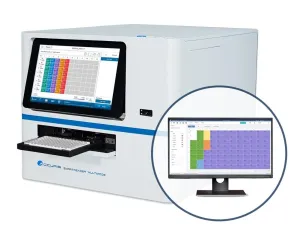

Accuris MR9620 SmartReader Multimode Microplate Reader w/ PC Software Included
Detection Modes
Absorbance, Fluorescence, Luminescence
Microplate Formats
6, 12, 24, 48, 96, and 384-well
Plate Incubation
Ambient +4°C to 45°C
Features
- Intuitive, 10-inch color touch screen
- Stand-alone system with optional PC software (FDA CFR Part 11)
- Monochromator-based system for UV through visible absorbance
- Filter module system for fluorescence assays
- Advanced PMT detector for luminescence assays
- Optional automatic injection modules for flash luminescence
- 2 Year Manufacturer's Warranty
Measurement Technologies | Absorbance, Fluorescence, Luminescence |
Plate Formats | 6- to 384-well plates |
Shaking | Linear (4.7 Hz, 7.0 Hz, 13.5 Hz), orbital and double orbital (240 – 1200 rpm) |
Incubation Range | RT +4 °C to 45 °C |
Display | 10.0 inch touchscreen |
Communication Ports | 2 USB A type ports / 1 USB B type port 1 Ethernet port RS232 interface |
Dimensions (WxDxH) | 16.5 x 21.7 x 15.2 in. (42.0 x 55.0 x 38.6 cm) |
Power Input | AC 100 to 240 V, 50 to 60 Hz |
Weight | 33 kg / 72.8 lbs |
Light Source | High Energy Xenon Flash Lamp |
Detector | Photodiode |
Wavelength Accuracy | 2 nm |
Wavelength Repeatability | 0.2 nm |
Bandwidth (FWHM) | > 2.5 nm |
Wavelength Range | 200 – 1000 nm, 1nm steps |
Absorbance | 0.0 – 4.0 OD |
Resolution | 0.0001 OD |
Accuracy | 96-precision mode:± (1.0 %+0.003Abs)@ (0.0-2.0Abs] ;± 2.0 % @ (2.0-3.0Abs] |
Repeatability | CV < 1.0 % or SD< 0.003 Fast(0.0-3.0Abs]CV < 0.5 % or SD< 0.003 Accurate(0.0-3.0Abs] |
Stray Light | 0.1 % @ 220 nm |
Linearity | R2 > 0.999 @ [0.0-3.0Abs] |
Measurement Speed | < 15 seconds |
Reading Mode | Top Reading |
Excitation Light Source | High Energy Xenon Flash Lamp |
Detector | Photo Multiplier Tube (PMT) |
Detection Limit | ≤ 1 pM |
Wavelength Range | EX: 200 – 1000 nm; EM: 270 – 850 nm |
Included Filter Cartridges | (EX / EM): 470 / 525nm ; 523 / 564nm ; 624 / 692nm |
Linear Dynamic Range | 6 logs |
Detector | Photo Multiplier Tube (PMT) |
Detection Limit | 15 amol / well |
Linear Dynamic Range | 6 logs |
