VACUUBRAND VACUU-VIEW Vacuum Gauge

Name: VACUUBRAND VACUU-VIEW Vacuum Gauge
Brand: Vacuubrand
SKU: 23696
Price: 1259.3 EUR
Availability: InStock

NewVacuubrandVacuum gaugesUnited States

€1,259.3excl. VAT

In stock

Can't find what you're looking for?

Upper measuring limit in mbar/hPa: 1100 mbar
Upper measuring limit in torr: 825 torr
Lower measuring limit in mbar/hPa: 0.1
Lower measuring limit in torr: 0.075 torr
Measurement principle: Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure

All 30 specifications

Ships to NL
Response within 1 hour
Warranty available. Buy without worry
Support from a scientist

Specifications 30

Brands: Vacuubrand
New/Used: New
Upper measuring limit in mbar/hPa: 1100 mbar
Upper measuring limit in torr: 825 torr
Lower measuring limit in mbar/hPa: 0.1
Lower measuring limit in torr: 0.075 torr
Measurement principle: Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure
Accuracy of measurement: < +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.) mbar/hPa/torr
ATEX conformity: II 3/- G Ex h IIC T4 Gc X Internal Atm. only
Temperature coefficient: < 0.07 mbar/hPa/0.05 torr /K mbar/hPa/torr /K
Vacum connection: Small flange KF DN 16 and hose nozzle DN 6/10 mm
Lower ambient temperature (storage): -10 °C
Upper ambient temperature (storage): 60 °C
Lower ambient temperature (operation): 10 °C
Upper ambient temperature (operation): 40 °C

Max. media temperature for continuous operation: 40 °C
Max. media temperature short term: 80 °C
Material of outer housing: Robust plastic housing with good chemical resistance
Venting valve: No
Protection class IEC 60529: IP 54
Protection class UL50E: Type 5
Protection class front side IEC 60529: IP 54
Weight: 0.19 kg

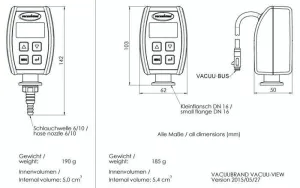

Dimension L in mm: 50 mm
Dimension B in mm: 62 mm
Dimension H in mm: 103 mm
Vacuum sensor: Integr.
Cable length connection in m: 2 m
NRTL certification: Yes
Items supplied: Vacuum gauge with integrated vacuum sensor, ready for operation, with kit hose nozzle DN 6/10 mm, wall-plug power supply and manual.

Product description

Precise, chemically resistant vacuum gauge with integrated sensor.

VACUUBRAND VACUU-VIEW Vacuum Gauge

Upper Measuring Limit 1100 mbar/hPa (825 torr) Lower Measuring Limit 0.1 mbar/hPa (0.075 torr) Vacuum Sensors Integrated

Features

Highest precision in the range from atmosphere down to 0.1 mbar, perfect gauge for all rough vacuum applications
Compact design with integrated sensor for useful setup in laboratory and process
Chemically resistant ceramic diaphragm sensor, highly reliable at harsh laboratory conditions even in case of aggressive chemicals
Illuminated display, easy to read
Display with menu driven handling easy to use e.g. for unit setting

For the monitoring of your vacuum processes in the rough vacuum range, the new vacuum gauges VACUU·VIEW are perfect! Chemically resistant ceramic diaphragm sensor for measurement in the rough vacuum range. VACUU·VIEW provides gas-independent pressure indication with precise capacitive readout.INCLUDED: The VACUUBRAND VACUU-VIEW Vacuum Gauge includes:

Kit Hose Nozzle DN 6/10 mm
Power Supply
Operator's Manual
Manufacturer's Documentation
2 Year Manufacturer's Warranty
