VACUUBRAND DVR 2pro Vacuum Gauge

Name: VACUUBRAND DVR 2pro Vacuum Gauge
Brand: Vacuubrand
SKU: 23633
Price: 1009.49 EUR
Availability: InStock

NewVacuubrandVacuum gaugesUnited States

€1,009.49excl. VAT

In stock

Can't find what you're looking for?

Upper measuring limit in mbar/hPa: 1060 mbar
Upper measuring limit in torr: 795 torr
Lower measuring limit in mbar/hPa: 1
Lower measuring limit in torr: 1 torr
Measurement principle: Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure

All 29 specifications

Ships to NL
Response within 1 hour
Warranty available. Buy without worry
Support from a scientist

Specifications 29

Brands: Vacuubrand
New/Used: New
Upper measuring limit in mbar/hPa: 1060 mbar
Upper measuring limit in torr: 795 torr
Lower measuring limit in mbar/hPa: 1
Lower measuring limit in torr: 1 torr
Measurement principle: Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure
Accuracy of measurement: < +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.) mbar/hPa/torr
Temperature coefficient: < 0.15 mbar/hPa/0.11 torr /K mbar/hPa/torr /K
Vacum connection: Small flange KF DN 16, PTFE tubing connection 10/8 mm, hose nozzle DN 6/10 mm
Lower ambient temperature (storage): -10 °C
Upper ambient temperature (storage): 60 °C
Lower ambient temperature (operation): 10 °C
Upper ambient temperature (operation): 40 °C
Max. media temperature for continuous operation: 40 °C

Max. media temperature short term: 80 °C
Automatic switch-off: User-selectable: 1-600 min (default 5 min) or continuous operation min
Measurement cycle: User-selectable: Automatic or 1 x per 3s, 1 x per 1s, 3 x per 1s
Material of outer housing: Robust plastic housing with good chemical resistance
Protection class IEC 60529: IP 40
Power supply: 9 V battery
Weight: 0.4 kg

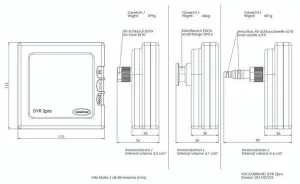

Dimension L in mm: 115 mm
Dimension B in mm: 115 mm
Dimension H in mm: 90 mm
Vacuum sensor: Integr.
Typical battery lifetime: 4.000 h, stand-by: 30.000 h h
NRTL certification: No
Items supplied: Vacuum gauge complete with integrated vacuum sensor, including battery 9 V alkali-manganese, support rod, connecting parts and manual.

Product description

Precision vacuum gauge with improved functionality and chemical resistance for versatile laboratory use.

VACUUBRAND DVR 2pro Vacuum Gauge

Upper Measuring Limit 1060 mbar/hPa (795 torr) Lower Measuring Limit 1 mbar/hPa (1 torr) Vacuum Sensors Integrated

Features

Improved functionality within the navigation menu helps to save energy and to increase the life cycle of the battery
Large, graphical analog display with digital measuring values alows to detect tendencies and makes it easier to readout precisely
Pressure unit user-selectable in mbar, hPa or Torr prevents unnecessary conversions
Different vacuum connections and the additional support rod allow the use in almost every laboratory application
Chemical resistant materials for wetted parts together with the capacitive ceramic diaphragm pressure sensor provide excellent long-term stability and accuracy

The DVR 2pro is a fully electronic, versatile vacuum gauge for the measuring range from atmospheric pressure to 1 mbar. All wetted parts are made from enhanced chemical resistant material which allows the use under very rough laboratory conditions. The high accuracy and the large graphical display from the DVR 2 have also been carried forward for the “pro” version. One of the main enhancements is the power supply with a normal 9 V Alkaline battery. The new battery slot at the back of the gauge allows for easy replacement of the battery. A wider range of connection parts provide a great range of connection flexibility for laboratory use.INCLUDED: The VACUUBRAND DVR 2pro Vacuum Gauge includes:

9V Alkali-Manganese Battery
Support Rod and Connecting Parts
Operator's Manual
Manufacturer's Documentation
2 Year Manufacturer's Warranty
