VACUUBRAND VACUU-VIEW Extended Vacuum Gauge

Name: VACUUBRAND VACUU-VIEW Extended Vacuum Gauge
Brand: Vacuubrand
SKU: 23695
Price: 1530.26 EUR
Availability: InStock

NewVacuubrandVacuum gaugesUnited States

€1,530.26excl. VAT

In stock

Can't find what you're looking for?

Upper measuring limit in mbar/hPa: 1100 mbar
Upper measuring limit in torr: 825 torr
Lower measuring limit in mbar/hPa: 1 x 10 -3
Lower measuring limit in torr: 1 x 10 -3 torr
Measurement principle: Ceramic diaphragm sensor + ceramic jacketed Pirani sensor

All 30 specifications

Ships to NL
Response within 1 hour
Warranty available. Buy without worry
Support from a scientist

Specifications 30

Brands: Vacuubrand
New/Used: New
Upper measuring limit in mbar/hPa: 1100 mbar
Upper measuring limit in torr: 825 torr
Lower measuring limit in mbar/hPa: 1 x 10 -3
Lower measuring limit in torr: 1 x 10 -3 torr
Measurement principle: Ceramic diaphragm sensor + ceramic jacketed Pirani sensor
Accuracy of measurement: +- 15% of indicated value in the range 0.01-5 mbar / +-3 mbar for > 5 mbar mbar/hPa/torr
ATEX conformity: II 3/- G Ex h IIC T4 Gc X Internal Atm. only
Temperature coefficient: +- 0.2 mbar/hPa/0.15 torr /K mbar/hPa/torr /K
Vacum connection: Small flange KF DN 16 and hose nozzle DN 6/10 mm
Lower ambient temperature (storage): -10 °C
Upper ambient temperature (storage): 60 °C
Lower ambient temperature (operation): 10 °C
Upper ambient temperature (operation): 40 °C

Max. media temperature for continuous operation: 40 °C
Max. media temperature short term: 80 °C
Material of outer housing: Robust plastic housing with good chemical resistance
Venting valve: No
Protection class IEC 60529: IP 54
Protection class UL50E: Type 5
Protection class front side IEC 60529: IP 54

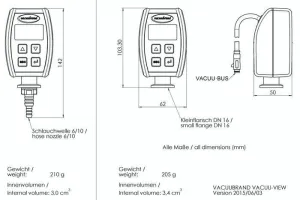

Weight: 0.19 kg
Dimension L in mm: 50 mm
Dimension B in mm: 62 mm
Dimension H in mm: 103 mm
Vacuum sensor: Integr.
Cable length connection in m: 2 m
NRTL certification: Yes
Items supplied: Vacuum gauge with integrated vacuum sensors, ready for operation, with kit hose nozzle DN 6/10 mm, wall-plug power supply and manual.

Product description

Precision vacuum measurement with chemical-resistant sensors, from atmosphere to fine vacuum.

VACUUBRAND VACUU-VIEW Extended Vacuum Gauge

Upper Measuring Limit 1100 mbar/hPa (825 torr) Lower Measuring Limit 1 x 10-3 mbar/hPa (1 x 10-3 torr) Vacuum Sensors Integrated

Features

Precision and chemical resistance in an exceptionally wide range from atmosphere down to 10-3 mbar, one gauge only for both rough and fine vacuum
Compact design with integrated sensors for useful setup in laboratory and process
The chemical resistant combination of ceramic diaphragm sensor and ceramic jacketed Pirani sensor ensures a long product life even with aggressive chemicals
Illuminated display, easy to read
Display with menu driven handling, easy to use e.g. for unit settings

For the monitoring of your vacuum processes in the rough and fine vacuum range, the new vacuum gauges VACUU·VIEW extended are perfect! The heavy duty combination of ceramic diaphragm sensor and ceramic jacketed Pirani sensor ensures reliable readings in the wide range from atmosphere down to 10-3 mbar.INCLUDED: The VACUUBRAND VACUU-VIEW Extended Vacuum Gauge includes:

Kit Hose Nozzle DN 6/10 mm
Power Supply
Operator's Manual
Manufacturer's Documentation
2 Year Manufacturer's Warranty
