Thermo Fisher Scientific (formerly FEI) Tecnai F20

Name: Thermo Fisher Scientific (formerly FEI) Tecnai F20
Brand: Thermo Fisher Scientific (formerly FEI)
SKU: 68781
Availability: PreOrder

UsedThermo Fisher Scientific (formerly FEI)Analytical devices - otherNetherlands

Procurable

Not in stock, available to order through our sourcing team

Not in stock, but we can get it for you

We source this model through our supplier network. Request a quote and we'll come back within one hour.

Request a quote
We confirm price and lead time
You approve, we ship to you

Accelerating Voltage: 200 kV
Electron Source: Schottky Field Emission Gun (FEG)
Point Resolution (TEM mode): 0.24 nm
Point Resolution (STEM mode): 0.19 nm
Line Resolution: 0.144 nm
Availability: Procurable
Lead time: Confirmed with your quote

All 22 specifications

Ships to NL
Response within 1 hour
Warranty available. Buy without worry
Support from a scientist

Specifications 22

Brands: Thermo Fisher Scientific (formerly FEI)
New/Used: Used
Accelerating Voltage: 200 kV
Electron Source: Schottky Field Emission Gun (FEG)
Point Resolution (TEM mode): 0.24 nm
Point Resolution (STEM mode): 0.19 nm
Line Resolution: 0.144 nm
Information Limit: 0.15 nm
Magnification Range (TEM mode): 25x - 1,030,000x
Magnification Range (STEM mode): 150x - 230,000,000x
Maximum Tilt Angle (Double-Tilt Holder): ±40°

Maximum Tilt Angle (Tomography Holder): ±80°
Sample Holder Types: Single Tilt, Double Tilt, Tomography, Cryo-Transfer
Cryogenic Capabilities: Supports cryo-TEM applications with specialized holders
EDS Detector: EDAX Octane T Optima 30 mm² SDD
Energy Resolution (EDS): 128 eV
Energy Resolution (EELS at 200 kV): 0.7 eV
Energy Resolution (EELS at 60 kV): 0.5 eV
Integrated Software Packages: EDS, EELS, Low-Dose Imaging, Tomography
Camera: Gatan Rio16, 30 fps full HD
Availability: Procurable
Lead time: Confirmed with your quote

Product description

200 kV field emission TEM/STEM with 0.19 nm resolution, EDS/EELS, tomography, and cryo-TEM capabilities.

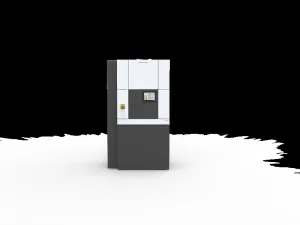

Tecnai F20 is a versatile 200 kV field emission transmission electron microscope (TEM) designed for high-resolution imaging and comprehensive analytical capabilities. This instrument excels in both TEM and scanning transmission electron microscopy (STEM) modes, making it ideal for detailed structural and compositional analyses across various scientific disciplines.

Key features include:

High-resolution imaging: Achieves a point resolution of 0.24 nm in TEM mode and 0.19 nm in STEM mode, facilitating the observation of fine structural details.
Advanced analytical tools: Equipped with energy-dispersive X-ray spectroscopy (EDS) and electron energy loss spectroscopy (EELS) for precise elemental and chemical analysis.
Versatile specimen handling: Features a goniometer allowing tilt ranges up to ±40° with standard holders and up to ±80° with tomography holders, enhancing 3D imaging capabilities.
Cryogenic capabilities: Supports cryo-TEM applications with specialized holders, enabling the study of temperature-sensitive samples.
Integrated software: Incorporates user-friendly software packages for EDS, EELS, low-dose imaging, and tomography, streamlining complex analyses.

The instrument is widely utilized in fields such as:

Materials science: Investigating the morphology, crystallography, and elemental composition of metals, ceramics, and semiconductors.
Nanotechnology: Characterizing nanoparticles, nanocomposites, and thin films.
Life sciences: Examining biological specimens, including viruses and cellular structures, particularly through cryo-TEM techniques.

Commonly found in university laboratories, biomedical research centres, and industrial R&D facilities, the Tecnai F20 has been a cornerstone in electron microscopy since its introduction in the early 2000s. Its enduring relevance is attributed to its robust design and adaptability to evolving research needs.
