PANalytical X'Pert

Name: PANalytical X'Pert
Brand: PANalytical
SKU: 68756
Availability: PreOrder

UsedPANalyticalAnalytical devices - otherNetherlands

Procurable

Not in stock, available to order through our sourcing team

Not in stock, but we can get it for you

We source this model through our supplier network. Request a quote and we'll come back within one hour.

Request a quote
We confirm price and lead time
You approve, we ship to you

X-ray source: Cu Kα radiation (Kα = 1.54187 Å)
Maximum operating voltage: 60 kV
Maximum operating current: 40 mA
Power supply: 220V, 50/60Hz, 9.6 kVA
Goniometer radius: 320 mm
Availability: Procurable
Lead time: Confirmed with your quote

All 23 specifications

Ships to NL
Response within 1 hour
Warranty available. Buy without worry
Support from a scientist

Specifications 23

Brands: PANalytical
New/Used: Used
X-ray source: Cu Kα radiation (Kα = 1.54187 Å)
Maximum operating voltage: 60 kV
Maximum operating current: 40 mA
Power supply: 220V, 50/60Hz, 9.6 kVA
Goniometer radius: 320 mm
Dimensions: 1131 mm (depth) x 1370 mm (width) x 1972 mm (height)
Weight: 1100 kg
Angular range: 3° < 2θ ≤ 135°
2θ resolution: ~0.002°
Detector: X’celerator 1D position sensitive detector

Detector type: PIXcel Detector
Sample stages: Flat Stage, Spinner Stage, Transmission Spinner Stage
Sample capacity: Up to 45 samples
Sample size: Up to 4 inches in diameter
Temperature chamber: Anton Paar DHS 1100 Dome hot stage
Temperature range: 25 °C to 900 °C
Humidity range: 5% to 95% relative humidity
Pressure range: 1 mbar to 10 bars
Temperature range of chamber: 25 °C to 900 °C
Availability: Procurable
Lead time: Confirmed with your quote

Product description

Versatile X-ray diffractometer with high-resolution goniometer and customizable optics for diverse sample types.

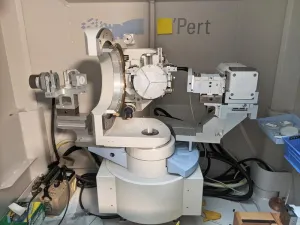

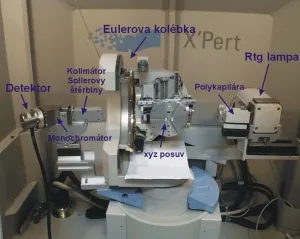

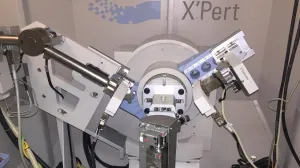

PANalytical X'Pert is a versatile X-ray diffractometer designed for comprehensive analysis of polycrystalline materials, including inorganic, organometallic, and organic substances. This instrument facilitates a wide range of X-ray diffraction (XRD) measurements, making it indispensable in materials science and related fields.

Key features include:

High-resolution goniometer: Ensures precise angular positioning for accurate diffraction data.
Interchangeable optics and detectors: Allows customization for specific experimental requirements, enhancing flexibility.
Multiple sample stages: Accommodates various sample types and geometries, including powders, thin films, and bulk materials.
Advanced software suite: Provides comprehensive data collection and analysis tools, streamlining the research process.

This diffractometer is widely applied in:

Materials science: Characterizing crystal structures and phase identification.
Geology: Analyzing mineral compositions and structures.
Chemistry: Investigating molecular arrangements and chemical bonding.
Pharmaceuticals: Ensuring quality control through polymorph identification.

Commonly utilized in university laboratories, research institutions, and industrial R&D facilities, the PANalytical X'Pert has been a cornerstone in analytical instrumentation since its release in the early 2000s. Its enduring relevance underscores its reliability and adaptability in evolving scientific landscapes.
