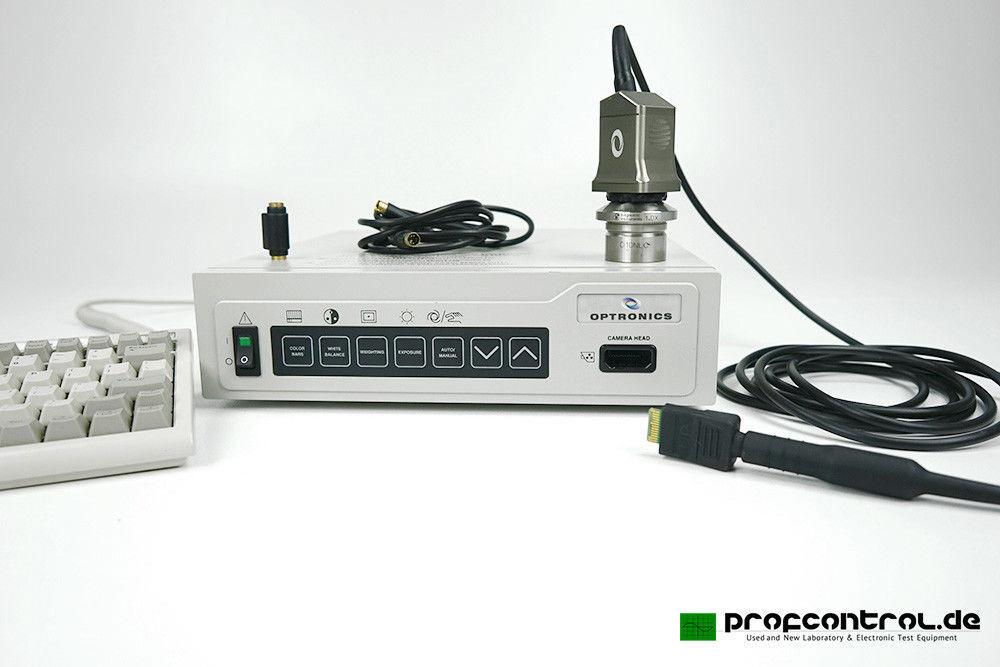

Optronics DEI-750 Camera Controller with S97670 1.3 MP CCD Microscope Camera

UsedOptronicsCamerasGermany

€995.03excl. VAT

In stock

Can't find what you're looking for?

MPN
DEI-750
Manufacturer number
DEI-750
Herstellernummer
DEI-750
Item no.
507
Sensor Type
CCD
All 10 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 10

Brands
Optronics
New/Used
Used
MPN
DEI-750
Manufacturer number
DEI-750
Herstellernummer
DEI-750
Item no.
507
Sensor Type
CCD
Resolution
1.3 MP
Detail
Color Sensor
Mount
C-Mount

Product description

Optronics microscope camera system with 1.3 MP 3-CCD color imaging and C-mount coupling.

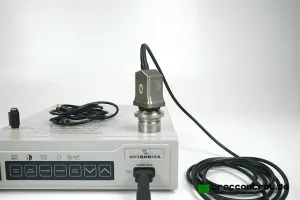

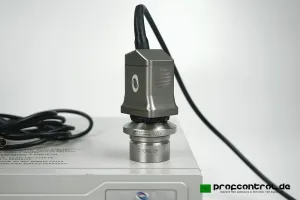

The Optronics DEI-750 camera controller is supplied with an Optronics S97670 1.3 MP CCD microscope camera for color imaging through compatible optical microscopes. The camera uses three 1/2-inch CCD chips, with one sensor assigned to each RGB color channel.

Camera and imaging specifications

  • Sensor: 3 × 1/2-inch CCD chips, one per color channel
  • Resolution: 1,312,992 total pixels in PAL mode; 1,138,176 total pixels in NTSC mode
  • Picture format: 6.4 × 4.8 mm
  • Mount: C-mount
  • Internal optics: f/1.4 lens with primary-color RGB separation prism
  • Auto exposure: Microprocessor-controlled Proprietary Continuous Ratchet Algorithm
  • Auto white balance: 2,280–4,420 K

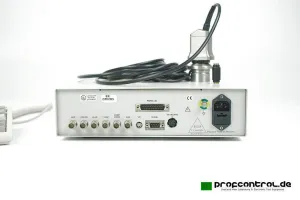

Video outputs

  • PAL: PAL 4.43 via BNC, Y/C via S-VHS, and RGB via BNC connectors
  • NTSC: NTSC 3.58 via BNC, Y/C via S-VHS, and RGB via BNC connectors
  • Input: 5-pole DIN connector for the control keyboard

Controller and camera dimensions

  • Camera head: 37.5 × 47.5 × 60.0 mm (W × H × D)
  • Camera head weight: 0.37 kg
  • Controller: 305 × 89 × 322 mm (W × H × D)
  • Controller weight: 3.8 kg
  • Power requirements: 100–240 V AC, 50/60 Hz, 0.5 A, 100 VA
  • Fuse: 2 × F2.0A, 250 V

Included equipment

  • Optronics 60674 DEI-750 camera controller

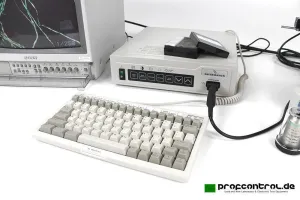

  • Optronics control keyboard
  • Optronics S97670 CCD camera

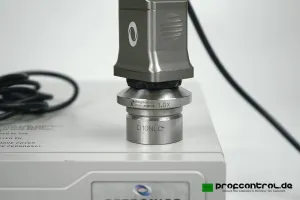

  • Diagnostic Instruments D10NLC 1.0x C-mount adapter
  • Power cord
  • S-video cable
  • Instruction manual provided as a PDF by email

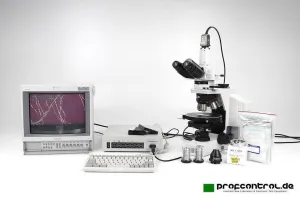

The system is suitable for microscope imaging, color documentation, cell biology, biotechnology, and laboratory research workflows requiring analog CCD image acquisition. The microscope and monitor are not included.
