BMG Labtech NEPHELOstar Galaxy Laser-Based Microplate Nephelometer and Turbidity Reader

The BMG Labtech NEPHELOstar Galaxy is a laser-based microplate nephelometer designed for turbidity, solubility, and light-scattering measurements in native microplate formats. It supports 96-well and 384-well plates and is suitable for applications in biotechnology, pharmaceutical research, microbiology, molecular diagnostics, and bioprocessing workflows.

• Detection mode: Nephelometry
• Measurement modes: Endpoint and kinetic
• Light source: Self-monitoring laser diode
• Wavelength: 635 ± 10 nm
• Laser output: 1 mW
• Selectable beam width: 1.5–3.5 mm
• Selectable intensity: 0–100%
• Scattering angle: Up to 80° full cone angle
• Detector: Side-window photomultiplier tube
• Dynamic range: 5 decades
• Maximum measurement value: 500,000 Relative Nephelometry Units at 1 s
• Stability: 0.2% deviation
• Laser lifetime: 20,000 hours
• Silica detection: 800 nM for particle sizes from 0.5 to 10 µm
• Read times: 23 seconds for 96-well plates and 66 seconds for 384-well plates, depending on assay conditions and liquid-surface stability
• Shaking: Linear, orbital, and double-orbital modes with user-definable time and speed
• Incubation: +5°C above ambient up to 38°C; the source also specifies 45°C as the top uniform incubation temperature
• Gas control: System for atmosphere injection or vacuum generation
• Reagent injection: Optional support for up to three built-in injectors, with injection at the measurement position for 6- to 384-well plates
• Injection volume: 3–350 µL per well
• Injection speed: Up to 420 µL/s
• Injection events: Up to four per well
• Additional injection features: Reagent back-flushing and individual well injection volumes
• Automation: Stacker and robot compatibility
• Software: Reader Control and Data Analysis Software, including multi-user control and MARS data analysis software
• Dimensions: 44 cm W × 48 cm D × 33 cm H
• Weight: 25 kg

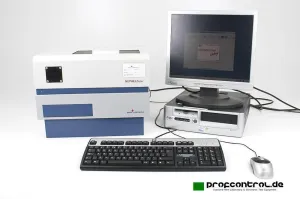

The tested unit is described as being in very good cosmetic and technical condition and fully functional. Items delivered include the BMG Labtech NEPHELOstar, a notebook with pre-installed software, communication cable, power cable, and software manual.
