Quantum Design MPMS

Name: Quantum Design MPMS
Brand: Quantum Design
SKU: 72929
Availability: PreOrder

UsedQuantum DesignProcess analysersNetherlands

Procurable

Not in stock, available to order through our sourcing team

Not in stock, but we can get it for you

We source this model through our supplier network. Request a quote and we'll come back within one hour.

Request a quote
We confirm price and lead time
You approve, we ship to you

Sensitivity: ≤1 × 10⁻⁸ emu
Magnetic Field Ramp Rate: 4 Oe/s to 700 Oe/s
Field Uniformity: ±0.01% over 4 cm
Oven Moment Sensitivity: 1 × 10⁻⁶ emu for H ≤ 2500 Oe and 8 × 10⁻⁶ emu for H > 2500 Oe
Temperature Range: 1.8 K to 400 K
Availability: Procurable
Lead time: Confirmed with your quote

All 36 specifications

Ships to NL
Response within 1 hour
Warranty available. Buy without worry
Support from a scientist

Specifications 36

Brands: Quantum Design
New/Used: Used
Sensitivity: ≤1 × 10⁻⁸ emu
Magnetic Field Ramp Rate: 4 Oe/s to 700 Oe/s
Field Uniformity: ±0.01% over 4 cm
Oven Moment Sensitivity: 1 × 10⁻⁶ emu for H ≤ 2500 Oe and 8 × 10⁻⁶ emu for H > 2500 Oe
Temperature Range: 1.8 K to 400 K
Magnetic Field Strength: ±7 T
Oven Temperature Range: 300 K to 1000 K
Helium-3 Refrigerator Temperature Range: 0.5 K to 1.8 K
Helium-3 Refrigerator Cooldown Time: ≤3 hours from 300 K to 0.5 K
Helium-3 Refrigerator Lifetime: 10 hours
Pressure Cell Maximum Pressure: 1.3 GPa
Sample Chamber Inner Diameter: 9 mm
Sample Chamber Length: 80 cm
Vibrational Amplitude: 0.1 mm to 8 mm
AC Susceptibility Compatible Sample Holders: Any sample holder
Pressure Cell Materials: Tin (Sn) and Lead (Pb)

Pressure Cell Construction: BeCu construction affords a minimal, uniform magnetic background
Pressure Cell Compatibility: Compatible with traditional DC Scan, AC Susceptibility (<10 Hz), ULF
Sample Holder Volume: 2.68 mm³
Sample Holder Transmittance (UV): >90% transmittance from 325 nm to 900 nm
Sample Holder Transmittance (IR): >90% transmittance from 375 nm to 2250 nm
Horizontal Sample Rotator Angular Range: 360°
Horizontal Sample Rotator Step Size: 0.1° minimum
Measurement Modes: DC, VSM, AC Susceptibility
AC Susceptibility Frequency Range: 0.1 Hz to 1000 Hz
AC Susceptibility Field Amplitude: 0.1 Oe to 10 Oe
AC Susceptibility Sensitivity: ≤5 × 10⁻⁸ emu
AC Susceptibility Phase Nulling: Direct phase nulling technique measures and cancels background AC phase shifts at every measurement
Light Source Power: 150 W
Light Source Type: Xenon Arc Lamp
Light Source Filter Wheel Positions: 10 positions
Light Source Filter Types: 9 bandpass filters at specified wavelengths
Availability: Procurable
Lead time: Confirmed with your quote

Product description

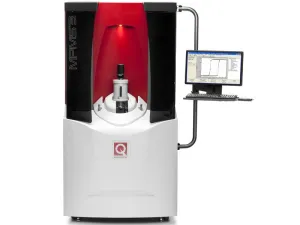

SQUID magnetometer with 7 T magnet, 1.8–400 K range, VSM/AC modes, and cryogen-free EverCool® technology.

The Quantum Design MPMS 3 is a state-of-the-art Superconducting Quantum Interference Device (SQUID) magnetometer designed for precise measurement of magnetic properties in various materials. This system offers unparalleled sensitivity, enabling researchers to detect magnetic moments as small as ≤10⁻⁸ emu, making it ideal for studying phenomena such as superconductivity, ferromagnetism, and superparamagnetism.

Key features include:

Temperature Range: Operates between 1.8 K and 400 K, with rapid temperature changes facilitated by Rapid Temp™ technology.

Magnetic Field Control: Equipped with a 7 Tesla magnet featuring QuickSwitch™ technology, allowing for swift and precise field adjustments.

Measurement Modes: Supports multiple modes, including DC, Vibrating Sample Magnetometry (VSM), and AC susceptibility, providing versatility for various experimental requirements.

Cryogen-Free Operation: Incorporates EverCool® technology, eliminating the need for liquid helium and reducing operational costs.

User-Friendly Interface: Features the MultiVu software platform, enabling automated and complex data acquisition procedures with ease.

The MPMS 3 is widely utilized in scientific fields such as materials science, condensed matter physics, and biotechnology. Its high sensitivity and versatility make it particularly valuable in biotechnology research, where understanding magnetic properties at the molecular level is crucial. Common applications include the study of magnetic nanoparticles for targeted drug delivery, magnetic resonance imaging (MRI) contrast agents, and the development of biosensors.

This instrument is commonly found in university laboratories, biomedical research centres, and biotechnology companies, supporting cutting-edge research and development. Since its release, the MPMS 3 has remained a critical tool in the scientific community, reflecting Quantum Design's commitment to innovation and excellence in magnetic measurement technology.
