Okolab PRIOR H117 Glass Recessed Thermal Plate and Temperature Controllers

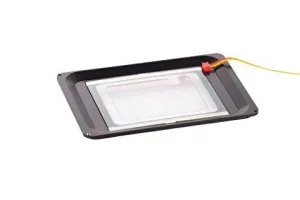

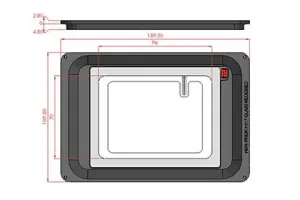

PRIOR H117 Glass Recessed Thermal Plate (H601-K-FRAME-GLASS-RECESSED):

• Creates a warm, optically transparent, flush surface for inverted microscope stages

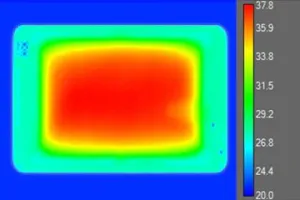

• Employs Indium Tin Oxide (ITO) coating for uniform heating across 0.5 mm Dragontrail chemically strengthened glass
• Aluminum frame provides rigidity and resistance to breakage and scratches
• Anti-scratch and anti-fingerprint surface treatment
• Recessed design raises focal plane by only 1.5 mm
• Temperature range: ambient to 60°C
• Temperature accuracy on specimen: ±0.3°C
• Protected by 10-year warranty on glass damage
• Requires H401-T-CONTROLLER or H401-T-PENNY for operation

H401-T-CONTROLLER (2-Channel Temperature Controller):

• Controls up to two heating devices independently
• 4.3" touchscreen interface
• External temperature sensor included for sample temperature accuracy
• Onboard data logging with USB download capability (temperature, calibration, alarms)
• Self-calibration and password-protected recalibration routines with certified thermometers
• Alarm buzzer and external alarm connector
• Temperature range: ambient to 60°C
• Accuracy on specimen temperature: ±0.3°C

H401-T-PENNY (Compact Single-Channel Controller):

• Compatible with all Okolab heating devices
• Temperature range: ambient to 60°C
• Set point resolution: 0.1°C
• Calibration via offset adjustment
• Maximum output power: 60 W
• Dimensions: 83.65 x 45.05 x 20.20 mm
• Weight: 47.5 g
