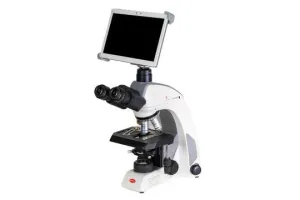

Motic PANTHERA C2 Trinocular Microscope with MOTICAM BTI10 Digital Camera Bundle

UsedMoticMicroscope accessoriesUnited States

From€3,385.03excl. VAT

In stock

Can't find what you're looking for?

Optical system
Color Corrected Infinity Optical System (CCIS®)
Observation tube
Trinocular head, Siedentopf type, 360° swiveling
Inclination
25° inclined, 360° swiveling
Trinocular light split
Fixed 50:50
Interpupillary distance
48-75mm
All 33 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 33

Brands
Motic
New/Used
Used
Optical system
Color Corrected Infinity Optical System (CCIS®)
Observation tube
Trinocular head, Siedentopf type, 360° swiveling
Inclination
25° inclined, 360° swiveling
Trinocular light split
Fixed 50:50
Interpupillary distance
48-75mm
Diopter adjustment
On both eyepieces, +/- 5 diopter
Eyepieces
Widefield UC-WF10X/20mm with diopter adjustment
Nosepiece
Reversed quintuple, coded
Objective classification
CCIS® UC Plan Achromatic (Pb free)
Objectives
4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)
Objective mounting thread
W 4/5"x1/36" (RMS standard)
Stand type
Upright
Stage
Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder
Stage size
185x145mm
Travel range X&Y
75x50mm
Condenser
Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
Diaphragm
Iris diaphragm
Focus mechanism
Coaxial coarse and fine focusing system with tension adjustment
Fine focus precision
2μm
Focusing stroke
25mm
Upper limit stop
Upper limit stop preset but adjustable
Filter holder
On top of the illuminator with fixing cap
Transmitted illumination
Koehler LED 3W & Quartz halogen 6V/30W with intensity control
Illumination interchangeability
Halogen/LED and LED color temperature interchangeability
Illumination features
Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity indicator
Transformer
Internal
Power supply
110-240V (CE)
Other features
USB 2.0 for external camera power
Accessories included
Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module
Dimensions LxWxH
282x210x396mm
Net weight
8.4kg

Product description

Trinocular microscope with CCIS optical system, LED & halogen illumination, and 4-objective turret plus digital camera.

The bundle includes:

  • Panthera C2 Trinocular Microscope with Color Corrected Infinity Optical System (CCIS®)
  • Moticam BTI10 digital camera with C-mount adapter compatibility

Microscope features:

  • Optical system: CCIS® Ultra Contrast (UC) objectives for 22mm field of view and high color fidelity
  • Observation tube: Trinocular Siedentopf type, 360° swiveling, 25° inclined
  • Eyepieces: Widefield UC-WF10X/20mm with ±5 diopter adjustment
  • Objective nosepiece: Reversed quintuple coded turret with W 4/5"x1/36" (RMS) mounting
  • Objectives:
  • 4X/0.10 (WD 30.5mm)
  • 10X/0.25 (WD 17.4mm)
  • 40X/0.65/S (WD 0.6mm)
  • 100X/1.25/S-Oil (WD 0.16mm)
  • Stage: Compact mechanical with built-in low-position rackless coaxial controls; size 185x145mm; travel 75x50mm
  • Condenser: Focusable and centerable Abbe N.A. 0.90/1.25 with contrast slider slot
  • Diaphragm: Iris diaphragm
  • Focus mechanism: Coaxial coarse and fine focusing with 2μm fine precision, 25mm stroke, adjustable upper limit stop
  • Illumination: Koehler LED 3W and Quartz halogen 6V/30W, intensity control, interchangeable sources with color temperature adjustment
  • Light features: Motic LightTracer system with light memory, auto sleep mode, and LED intensity indicator on nosepiece
  • Power supply: Internal transformer, 110-240V CE certified
  • Connectivity: USB 2.0 for camera power

Accessories included: dust cover, power cord, Allen key, blue filter, halogen bulb, LED module

Dimensions: 282x210x396mm (LxWxH); Net weight: 8.4 kg
