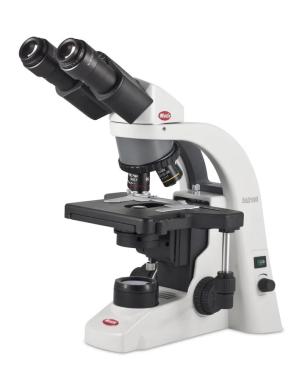

Motic BA210E Compound Microscope with Binocular and Trinocular Options

UsedMoticMicroscope accessoriesUnited States

From€1,217.72excl. VAT

In stock

Can't find what you're looking for?

Observation tube
Binocular head, Siedentopf type
Optical system
Colour Corrected Infinity Optical System (CCIS®)
Condenser
Focusable Abbe condenser N.A. 1.25 with slot for contrast sliders
Darkfield
Optional slider
Diaphragm
Iris diaphragm
All 35 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 35

Brands
Motic
New/Used
Used
Observation tube
Binocular head, Siedentopf type
Optical system
Colour Corrected Infinity Optical System (CCIS®)
Condenser
Focusable Abbe condenser N.A. 1.25 with slot for contrast sliders
Darkfield
Optional slider
Diaphragm
Iris diaphragm
Diopter adjustment
On both eyepieces, +/- 5 diopter
Eyepieces
Widefield N-WF10X/20mm with diopter adjustment
Filter holder
On top of the illuminator with fixing cap
Fine focus precision
2µm
Fluorescence
Optional LED
Focus mechanism
Coaxial coarse and fine focusing system with tension adjustment
Focusing stroke
20mm
Illumination interchangeability
Quartz halogen 6V/30W or LED 3W
Inclination
30° inclined, 360° rotating
Interpupillary distance
55-75mm
Nosepiece
Reversed quadruple
Objective classification
CCIS® EC Plan Achromatic, DIN
Objective mounting thread
W 4/5"x1/36" (RMS standard)
Objectives
4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)
Phase contrast
Optional slider
Polarization
Optional add-on
Stage
Mechanical stage with built-in low position rackless coaxial stage control and sample holder
Stage size
150x150mm
Stand type
Upright
Standard contrast technique
Brightfield
Transmitted illumination
Quartz halogen 6V/30W with intensity control
Travel range X&Y
80x30mm
Upper limit stop
Upper limit stop preset but adjustable
Transformer
Internal
Power supply
100-240V (CE)
Accessories included
Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, cord hanger, thumb screw
Dimensions LxWxH
360x220x395mm
Weight Net
7.2kg

Product description

Compound microscope with CCIS® optics, 4x-100x objectives, quartz halogen/LED illumination, and mechanical stage.

  • Optical System: Colour Corrected Infinity Optical System (CCIS®) with Plan Achromatic DIN objectives (4X/0.10, 10X/0.25, 40X/0.65/S, 100X/1.25/S-Oil)
  • Observation Tube: Binocular or trinocular Siedentopf type, with 30° inclination and 360° rotation
  • Focus Mechanism: Coaxial coarse and fine focusing with 2 µm fine focus precision and tension adjustment; 20 mm focusing stroke
  • Condenser: Focusable Abbe condenser, N.A. 1.25 with slot for contrast sliders; iris diaphragm included
  • Illumination: Quartz halogen 6V/30W or LED 3W interchangeable, with built-in intensity control and filter holder
  • Stage: Mechanical stage 150x150 mm with 80x30 mm X&Y travel, low position rackless coaxial controls, and built-in sample holder
  • Additional Features:
  • Diopter adjustment ±5 on both eyepieces
  • Widefield N-WF10X/20 mm eyepieces
  • Optional darkfield slider, fluorescence LED, phase contrast slider, and polarization accessories
  • Reversed quadruple nosepiece with RMS standard mounting thread
  • Internal power supply with universal 100-240 V input (CE certified)
  • Dimensions and Weight: 360x220x395 mm; net weight 7.2 kg
  • Included Accessories: Dust cover, power cord, Allen key, immersion oil (5 ml), blue filter, spare fuse, cord hanger, thumb screw
