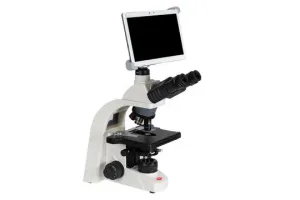

Motic BA310E LED Trinocular Microscope with Moticam BTI10 Digital Camera Bundle

UsedMoticMicroscope accessoriesUnited States

€5,027.05excl. VAT

In stock

Can't find what you're looking for?

Observation tube
Trinocular head, Siedentopf type, 360° swiveling
Optical system
Colour Corrected Infinity Optical System (CCIS®)
Condenser
Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
Darkfield
Optional slider/turret
Diaphragm
Iris diaphragm
All 36 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 36

Brands
Motic
New/Used
Used
Observation tube
Trinocular head, Siedentopf type, 360° swiveling
Optical system
Colour Corrected Infinity Optical System (CCIS®)
Condenser
Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
Darkfield
Optional slider/turret
Diaphragm
Iris diaphragm
Diopter adjustment
On both eyepieces, +/- 5 diopter
Eyepieces
Widefield N-WF10X/20mm with diopter adjustment
Filter holder
On top of the illuminator with fixing cap
Fine focus precision
2µm
Fluorescence
Optional LED
Focus mechanism
Coaxial coarse and fine focusing system with tension adjustment
Focusing stroke
20mm
Illumination interchangeability
Quartz halogen 6V/30W or LED 3W
Inclination
30° inclined, 360° rotating
Interpupillary distance
48-75mm
Nosepiece
Reversed quintuple
Objective classification
CCIS® EC Plan Achromatic, DIN
Objective mounting thread
W 4/5"x1/36" (RMS standard)
Objectives
4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)
Phase contrast
Optional slider/turret
Polarization
Optional add-on
Stage
Mechanical stage with built-in low position rackless coaxial stage control with tension adjustment and sample holder
Stage size
180x170mm
Stand type
Upright
Standard contrast technique
Brightfield
Transmitted illumination
Koehler Quartz halogen 6V/30W with intensity control
Travel range X&Y
80x55mm
Trinocular light split
100:0/20:80 or 100:0/0:100
Upper limit stop
Upper limit stop preset but adjustable
Transformer
Internal
Power supply
100-240V (CE)
Accessories included
Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, cord hanger, thumb screw
Dimensions LxWxH
400x220x400mm
Weight Net
8.6kg

Product description

Trinocular upright microscope with CCIS optics, LED/halogen illumination, and integrated Moticam BTI10 camera.

The Motic BA310E LED Trinocular Microscope is a precision upright microscope featuring:

  • Optical system: Colour Corrected Infinity Optical System (CCIS®)
  • Observation tube: Trinocular Siedentopf type, 360° swiveling
  • Illumination: Interchangeable 6V/30W Quartz halogen or 3W LED modules with intensity control
  • Stage: Mechanical rackless coaxial stage control (80x55mm travel) with tension adjustment and sample holder
  • Focus mechanism: Coaxial coarse and fine focus with 2µm fine precision and 20mm stroke, including tension adjustment
  • Objectives included: CCIS® EC Plan Achromatic DIN set — 4X/0.10, 10X/0.25, 40X/0.65/S, 100X/1.25/S Oil immersion
  • Eyepieces: Widefield N-WF10X/20mm with ±5 diopter adjustment
  • Condenser: Focusable, centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
  • Contrast techniques: Standard brightfield, optional phase contrast slider/turret, darkfield slider/turret, fluorescence LED and polarization add-ons available
  • Nosepiece: Reversed quintuple
  • Trinocular light split options: 100:0/20:80 or 100:0/0:100
  • Mechanical specifications: 30° inclined head, 360° rotation; interpupillary distance 48–75mm
  • Power supply: Internal transformer, 100-240V CE certified
  • Accessories included: Moticam BTI10 digital camera and compatible C-mount adapter, dust cover, immersion oil (5ml), blue filter, Allen key, thumb screw, spare fuse, power cord, cord hanger
  • Dimensions & weight: 400 x 220 x 400 mm; 8.6 kg net weight

This bundle integrates advanced optical and mechanical improvements, including a rackless stage and flexible illumination options optimized for diverse microscopy applications.
