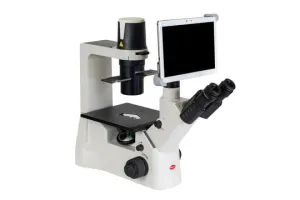

Motic AE2000 Trinocular Microscope with Moticam BTI10 Digital Camera Bundle

UsedMoticMicroscope accessoriesUnited States

From€4,533.37excl. VAT

In stock

Can't find what you're looking for?

Observation tube
Trinocular head, Siedentopf type, 360° swiveling
Optical system
Colour Corrected Infinity Optical System (CCIS®)
Condenser
ELWD condenser N.A. 0.30 (WD = 72mm) with filter holder
Diaphragm
Iris diaphragm
Diopter adjustment
On both eyepieces, +/- 5 diopter
All 31 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 31

Brands
Motic
New/Used
Used
Observation tube
Trinocular head, Siedentopf type, 360° swiveling
Optical system
Colour Corrected Infinity Optical System (CCIS®)
Condenser
ELWD condenser N.A. 0.30 (WD = 72mm) with filter holder
Diaphragm
Iris diaphragm
Diopter adjustment
On both eyepieces, +/- 5 diopter
Eyepieces
Widefield N-WF10X/20mm with diopter adjustment
Fine focus precision
2µm
Focus mechanism
Coaxial coarse and fine focusing system with tension adjustment
Focusing stroke
8mm
Free working distance
Working distance without condenser 184mm
Illumination features
Auto on/off
Illumination interchangeability
Quartz halogen 6V/30W or LED 3W
Inclination
45° inclined
Interpupillary distance
48-75mm
Nosepiece
Left side facing quadruple
Objective classification
CCIS® Plan Achromatic, DIN
Objective mounting thread
W 4/5"x1/36" (RMS standard)
Objectives
4X/0.10 (WD 12.6mm), PH10X/0.25 (WD 4.1mm), [Optional] LWD PH20X/0.30 (WD 4.7mm), [Optional] LWD 40X/0.50 (WD 3.0mm)
Phase contrast
Slider
Stage
Plain stage with metal and glass stage inserts
Stage size
200x239mm
Stand type
Inverted
Standard contrast technique
Brightfield, phase contrast
Transmitted illumination
Quartz Halogen 6V/30W with intensity control
Transformer
External
Power supply
100-240V (CE)
Accessories included
Dust cover, power cord, blue, green and neutral density filters, phase ring Ph1, centering telescope, centering keys
Dimensions LxWxH
556x218x496mm
Weight Net
12.2kg

Product description

Trinocular inverted microscope with CCIS® optical system, brightfield/phase contrast, and 6V/30W halogen or 3W LED illumination.

The Motic AE2000 microscope bundle includes:

  • Microscope: AE2000 Trinocular, Siedentopf-type 360° swiveling observation tube
  • Camera: Moticam BTI10 digital camera
  • Adapter: Compatible C-mount adapter for camera integration

Optical System:

  • Colour Corrected Infinity Optical System (CCIS®)
  • Objectives: CCIS® Plan Achromatic, DIN compatibility, RMS standard mount
  • Objectives included: 4X/0.10 (WD 12.6mm), PH10X/0.25 (WD 4.1mm)
  • Optional LWD PH20X/0.30 (WD 4.7mm), LWD 40X/0.50 (WD 3.0mm)
  • Phase contrast via slider

Mechanical and Optical Features:

  • Condenser: ELWD condenser, N.A. 0.30, working distance 72mm, filter holder included
  • Diaphragm: Iris diaphragm
  • Eyepieces: Widefield N-WF10X/20mm with ±5 diopter adjustment
  • Fine focus precision: 2µm, coaxial coarse and fine focusing with tension adjustment
  • Focusing stroke: 8mm
  • Free working distance without condenser: 184mm
  • Interpupillary distance: 48–75mm
  • Nosepiece: Quadruple, left side facing

Illumination:

  • Transmitted illumination sources: Quartz halogen 6V/30W or LED 3W
  • Illumination features: Auto on/off, intensity control
  • External transformer
  • Power supply: 100–240V (CE certified)

Stage and Stand:

  • Plain stage with metal and glass inserts, size 200x239mm
  • Inverted stand
  • Inclination: 45° inclined

Included Accessories:

  • Dust cover
  • Power cord
  • Blue, green, and neutral density filters
  • Phase ring Ph1
  • Centering telescope and keys

Physical Specifications:

  • Dimensions (LxWxH): 556 x 218 x 496 mm
  • Net weight: 12.2 kg
