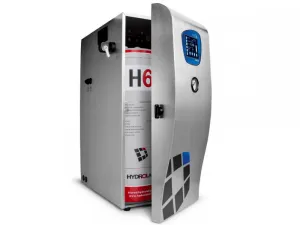

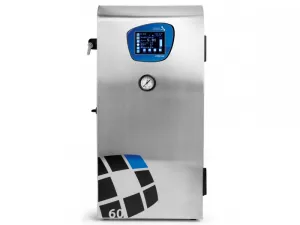

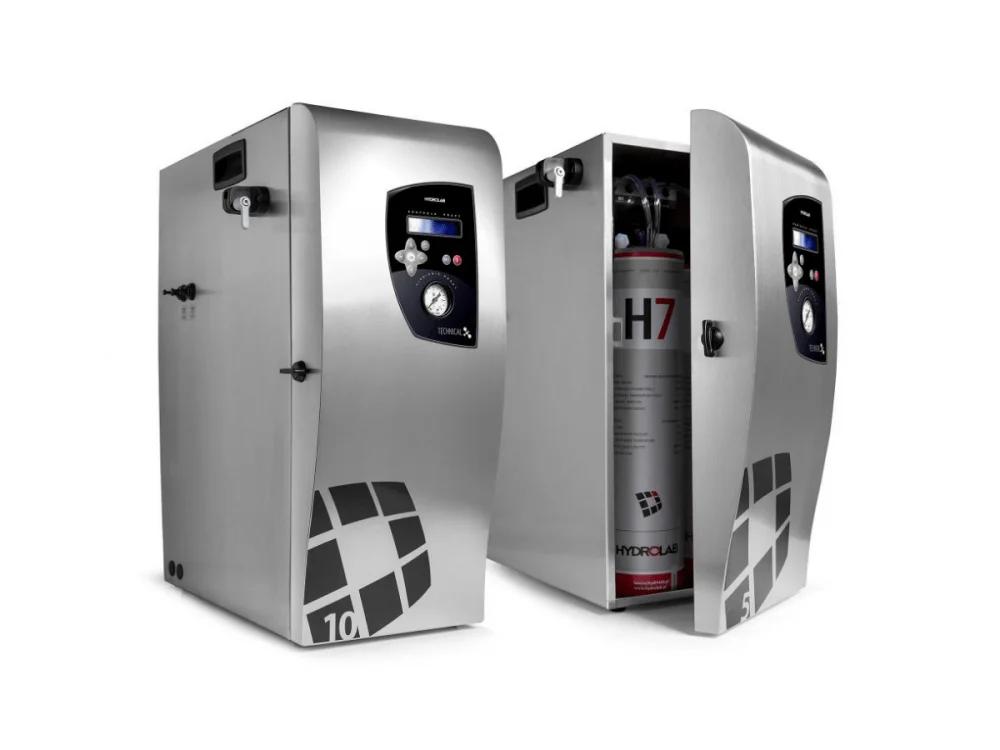

Hydrolab Spring Laboratory Water Purification System with RO, Ion Exchange, and Optional UV Microfiltration

The Hydrolab Spring water purification system processes potable tap water to generate Type I, II, or III purified water suitable for AAS, ICP, HPLC, and biochemical applications.

• Feed Water: Potable tap water at standard tap pressure (no compressor needed)
• Output Capacity: Available in sizes producing 5, 10, 20, 30, 40, 50, or 60 L/hour
• Water Quality:
• Types supported: Type III and Type II as standard
• Optional upgrade for Type I water with UV lamp and microfiltration
• Conductivity < 0.06 μS/cm (due to double demineralization with mixed ion resin)
• Purification Technologies:
• Sediment filtration with 5 μm filter module
• Prefiltration and water softening prior to reverse osmosis (RO)
• RO removes 96–99% of dissolved substances
• Double demineralization via ion exchange resin
• Microfiltration cascade capsule with membrane pump (S and UV models only)
• UV lamp for sterilization (UV model only)
• Hardware and Controls:
• Full-color touchscreen controller displays inlet/outlet temperature and conductivity, system status, dosing, tank fill level, date/time, and service schedule
• Audio-visual alarms for module replacement: A2 softening, ion exchange, RO, and UV lamp (where applicable)
• Pump to increase feed water pressure: 24 V for 5 and 10 L models, 48 V for 20 to 60 L models
• Installation: Can be connected to a water storage tank or directly to autoclaves, climatic chambers, etc.
• Warranty: 24 months manufacturer warranty
• Consumables: Includes 12 months supply of consumables

Options:

• Efficiency: Select from 5, 10, 20, 30, or 40 L/hour
• Upgrades: Standard, Ultrafiltration (S model), and UV (UV model) available for enhanced water purity and application versatility.
