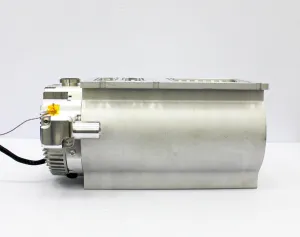

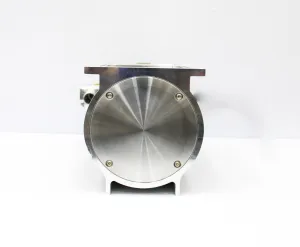

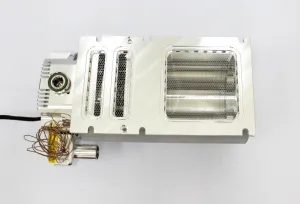

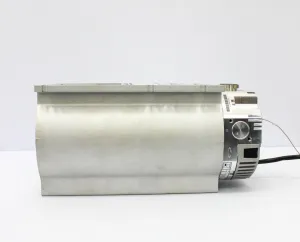

Edwards Next240 IIT Horizontal Turbomolecular Vacuum Pump 1439.99 L/min

UsedEdwards VacuumVacuum pumpsUnited States

€2,229.73excl. VAT

In stock

Can't find what you're looking for?

make
Edwards
hertz
Does Not Apply
voltage
Does Not Apply
warranty
30-Day Warranty On Part
shipping_type
FedEx Ground
All 11 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 11

Brands
Edwards Vacuum
New/Used
Used
make
Edwards
hertz
Does Not Apply
weight
24.0 Lb
voltage
Does Not Apply
warranty
30-Day Warranty On Part
dimensions
14.0in x 8.0in x 7.0in
shipping_type
FedEx Ground
item_condition
Good
manufacturing_date
Does Not Apply

Product description

Hybrid bearing turbo pump with 1439.99 L/min speed, integrated controller, 3.75E-10 Torr ultimate pressure.

  • Design: Hybrid bearing combining oil-lubricated ceramic lower bearing and dry permanent magnetic upper bearing.
  • Performance:
  • Nominal pumping speed: 1439.99 L/min (He: 1379.99 L/min, H2: 989.99 L/min)
  • Ultimate pressure: 3.75 × 10⁻¹⁰ Torr
  • Maximum backing pressure: 15.00 Torr
  • Compression ratios: N₂ = 1.0 × 10¹⁰, He = 1.0 × 10¹⁰, H₂ = 15,000

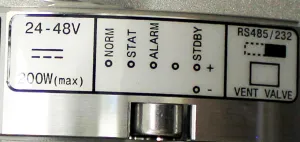

  • Motor & Control: Sensorless DC motor with 24–48 V, nominal rotational speed 1000 Hz, ramp-up time 150 s. Integrated drive compatible with TAG and TIC controllers.
  • Maintenance: User serviceable in the field with minimal tools required.
  • Additional Specs:

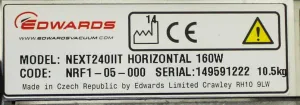

  • Power rating: 160 W
  • Volume gas ballast purge rate: 0.045 Pam/s
  • Weight: 13.06 kg (28.8 lbs)
  • Shipping dimensions: 42.67 cm × 24.38 cm × 21.34 cm (16.8 × 9.6 × 8.4 inches)
  • Condition & Warranty: Gently used, powers on, basic testing performed; minor cosmetic wear; no cables, computer, or software included. Covered by a 30-day warranty.
  • Harmonized Code: 84148040 (vacuum pumps for gas or vapor compression).
