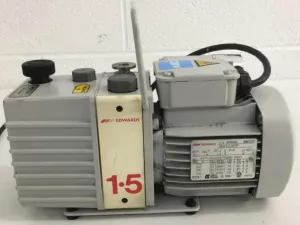

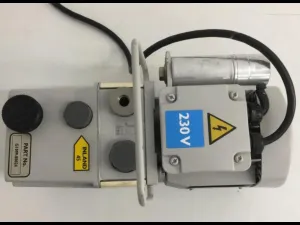

Edwards E2M1.5 Two-Stage Rotary Vane Vacuum Pump

UsedEdwards VacuumVacuum pumpsUnited Kingdom

Price on request

In stock

Can't find what you're looking for?

Warranty
30 days (Richmond Promise)
All 5 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 5

Brands
Edwards Vacuum
New/Used
Used
Weight
10.4 kg
Dimensions
14 × 32 × 17 cm
Warranty
30 days (Richmond Promise)

Product description

Two-stage oil-sealed rotary vane vacuum pump with thermal overload protection and gas ballast valve for vapor handling.

  • Two-stage, direct drive, sliding vane vacuum pump
  • Oil-sealed design for reliable, long-term operation
  • Free-standing unit with drive provided via coupling from a single-phase motor

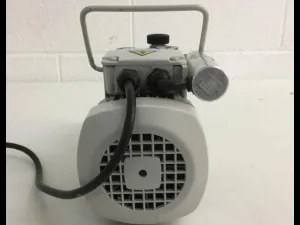

  • Motor fully enclosed and cooled by a motor-cooling fan directing air along motor fins
  • Thermal overload device with automatic reset protects motor from overheating
  • Oil pressure system lubricates shaft bearings and rotor sealing faces
  • Oil distribution valve prevents oil suckback into pump interior after stopping (except when gas ballast valve is open)
  • Sight-glass with O-ring seal for visual inspection of oil level and condition
  • Oil filler plug (top) and oil drain plug (bottom) on oil reservoir
  • Features carrying handle, inlet port, outlet nozzle, and gas ballast control
  • Mounted on steel baseplate with rubber pads for stability and vibration dampening
  • Pumping speed range: 0.7 to 1.5 m³/h
  • Alternate side inlet connection port reduces installation height
  • Gas ballast valve enhances water vapor handling capacity
  • Simple installation and operation with no user wiring required
  • Forced air cooling maintains low pump surface temperature
