Roche MagNA Pure Compact Automated Nucleic Acid Isolation System

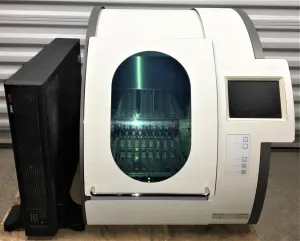

The Roche MagNA Pure Compact is a benchtop instrument designed for automated nucleic acid isolation. It features an 8-nozzle pipette head that processes 1 to 8 samples in parallel from diverse sample types such as mammalian blood, serum, plasma, tissue, or cells. Purification times range from 15 to 40 minutes depending on the protocol.

• Sample volume range: 100 to 1000 µL
• Elution volume range: 50 to 200 µL
• Supports flexible sample and elution volumes to achieve required nucleic acid concentrations.
• Integrated sample tracking, clot detection, tip-loss monitoring, cartridge and volume verification with data saved for documentation.
• Includes Gryphon GD4130 barcode reader for kit and sample tracking.
• Minimizes contamination risk by using prefilled reagents/disposables, synchronized stage movement, integrated HEPA filtration, and UV decontamination.
• Isolated nucleic acids are suitable for PCR, RT-PCR, and other downstream molecular biology applications.
• Compact standalone design conserves laboratory space.

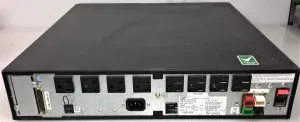

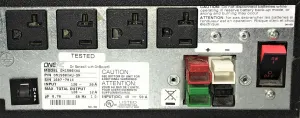

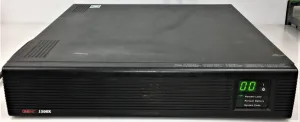

• System includes a OneAC ON1500XAU uninterruptible power supply (UPS).

For further details, see links to video, literature, and manuals provided by the manufacturer.
