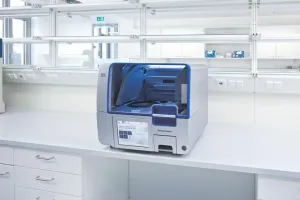

Qiagen QIAcube Connect Automated DNA/RNA/Protein Purification System with UV Light, 12 Sample Capacity

The Qiagen QIAcube Connect (Model 9002864) is a fully automated purification system designed for molecular biology workflows. It processes up to 12 samples per run and supports over 80 Qiagen kits with more than 140 standard protocols. Key components integrated into the system include:

• Centrifuge with a maximum speed of 10,640 rpm (equivalent to 12,000 x g)
• Heated shaker operating at 100–2000 rpm, heating samples up to 70°C
• Automated pipetting system with volume range 5–900 µl
• UV LED light integrated for worktable decontamination and sample safety
• Robotic gripper for automated handling
• Operates via a large touchscreen interface with automated loading verification
• Remote monitoring capability via the QIAsphere App enables workflow oversight

Technical specifications:

• Power supply: 100–240 V AC, 50/60 Hz, 650 VA
• Operating environment: temperature 18–28°C, relative humidity up to 75% (non-condensing)
• Compatible with Windows and Mac OS
• Dimensions (metric): 97.54 cm x 100.58 cm x 155.45 cm
• Weight: 125.19 kg

The unit is manufactured in the United States and is intended for research laboratory use in applications such as DNA/RNA sequencing, gene expression analysis, and proteomics. The system’s classification under harmonized code 847989 reflects its nature as a specialized laboratory automation device combining multiple functions.
