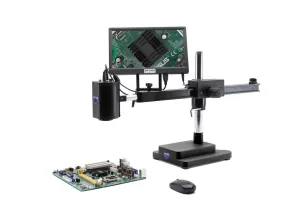

Optika C-HAF Full HD Autofocus HDMI Camera System with Boom Stand and 11.5” LCD Screen

The Optika C-HAF is a high-performance full HD autofocus inspection camera system, engineered to deliver crystal-clear 1080p video at 60 fps via HDMI output. Equipped with a 2 MP Sony Exmor CMOS sensor (1/2.8”), this system supports instant autofocus acquisition times under 1 second, enhancing productivity in inspections of multi-layered or complex specimens.

Key camera features include:

• Optical zoom ranging from 1x to 14x with additional 1x-6x electronic zoom.
• Versatile focusing with autofocus and manual focus options, supporting working distances from 10 cm to infinity, making it suitable for detailed biotechnology applications and microscopic inspections.
• Progressive scanning with manual, auto, and one-push white balance and exposure modes to optimize image quality under variable lighting.

The camera is integrated on a robust boom stand featuring:

• 3D joint enabling 360° swivel and 180° tilt for optimal camera positioning.
• Sliding horizontal rail (750 mm arm length with 330 mm movement) for longitudinal adjustments, along with lockable height adaptations, ensuring stable and precise placement during imaging tasks.
• Compact base (210×257 mm) supporting a sturdy Ø32×425 mm pillar, overall stand weight 16.25 kg for high stability.

An ergonomic 11.5” Full HD HDMI LCD screen (rotatable 360°, inclinable) is mounted on the stand for real-time viewing and direct control of camera functions. Included accessories—wireless mouse, HDMI cable, microSD card, and power supply—facilitate immediate integration into laboratory workflows.

Widely used in biomedical engineering, cell imaging, and molecular diagnostics, this camera system is essential for detailed video inspections required in bioprocessing and synthetic biology research, offering rapid autofocus and high-resolution imaging to support precision in biomanufacturing and gene editing workflows.
