Thermo Scientific HyPerforma Wave-Style Rocker Bioreactor

UsedThermo Fisher ScientificCell culture media and reagentsUnited States

Price on request

In stock

Can't find what you're looking for?

Description

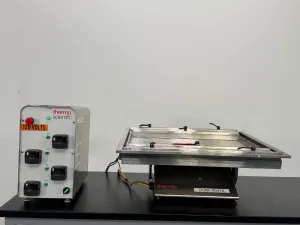

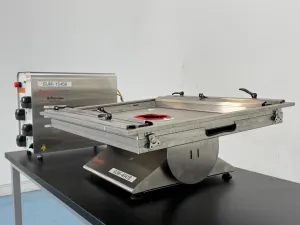

The Thermo Scientific HyPerforma Wave-Style Bioreactor F100-2569-513 comprises a stainless steel rocking platform with a fitted biocontainer holder and a control module labeled for 120 volts operation. The control unit includes multiple configurable ports for analog sensor inputs (pH, dissolved oxygen, temperature, foam, cold finger), digital inputs/outputs, RS-485 communication, and connections for agitator power and pump tower. The system operates on 120/240 VAC, 50/60 Hz, with a maximum power draw of 1380 VA and a 15 amp fuse rating. Serial numbers visible are S15458 for the control box and AK3902170005 for the platform. The system is assembled in the USA and features several safety and operational indicator lights. There is no visible software version or manufacturing year on the equipment.
Technical Data
Model: F100-2569-513 Serial Number: AK3902170005 Configuration: Model: F100-2569-513 Serial Number: AK3902170005 Model: F100-2277-303 Rev 6 Serial Number: AH5402170003 Voltage: 120/240 VAC Frequency: 50/60 Hz Power Consumption: 1380 VA max Fuse Rating: 15 AMP
Configuration
Model: F100-2569-513 Serial Number: AK3902170005 Model: F100-2277-303 Rev 6 Serial Number: AH5402170003
Voltage
120/240 VAC
Frequency
50/60 Hz
All 12 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 12

Brands
Thermo Fisher Scientific
New/Used
Used
Description
The Thermo Scientific HyPerforma Wave-Style Bioreactor F100-2569-513 comprises a stainless steel rocking platform with a fitted biocontainer holder and a control module labeled for 120 volts operation. The control unit includes multiple configurable ports for analog sensor inputs (pH, dissolved oxygen, temperature, foam, cold finger), digital inputs/outputs, RS-485 communication, and connections for agitator power and pump tower. The system operates on 120/240 VAC, 50/60 Hz, with a maximum power draw of 1380 VA and a 15 amp fuse rating. Serial numbers visible are S15458 for the control box and AK3902170005 for the platform. The system is assembled in the USA and features several safety and operational indicator lights. There is no visible software version or manufacturing year on the equipment.
Technical Data
Model: F100-2569-513 Serial Number: AK3902170005 Configuration: Model: F100-2569-513 Serial Number: AK3902170005 Model: F100-2277-303 Rev 6 Serial Number: AH5402170003 Voltage: 120/240 VAC Frequency: 50/60 Hz Power Consumption: 1380 VA max Fuse Rating: 15 AMP
Configuration
Model: F100-2569-513 Serial Number: AK3902170005 Model: F100-2277-303 Rev 6 Serial Number: AH5402170003
Voltage
120/240 VAC
Frequency
50/60 Hz
Power Consumption
1380 VA max
Fuse Rating
15 AMP
Accessories
Integrated sensor port panel for pH, dissolved oxygen (DO), temperature, foam level, cold finger, and analog inputs (AX1, AX2, AX3, AI2-AI7), Control module with digital inputs/outputs and RS-485 connectivity, Rocking platform with biocontainer clamp system, Power cables and connectors
Dimensions
Platform dimensions approximately 28 × 24 × 6 in (L × W × H) (estimated typical rack size; official dimensions not labeled)
Weight
Approximately 40 lbs (estimated typical weight for similar wave bioreactor platforms and control units)

Product description

Wave-style rocking bioreactor offering controlled cell culture with sensors for pH, DO, temp, and foam monitoring.

  • Designed for scalable, efficient cell culture processes
  • Wave-style rocking platform provides gentle mixing and optimal gas transfer
  • Suitable for mammalian, insect, and stem cell cultivation
  • Supports multiple sensor inputs: pH, dissolved oxygen (DO), temperature, foam level
  • Flexible configurations for R&D and production environments
  • Features digital I/O and RS-485 communication for automation and integration
  • Portable and compact design for easy setup and maintenance
  • Ensures reproducible results with operational robustness
