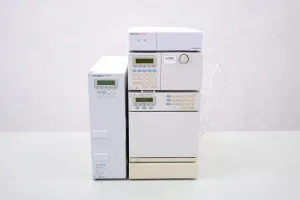

Shimadzu 10/20 Series HPLC System with CTO-10ASvp Oven and LC-10ADvp Pump

The Shimadzu 10/20 series HPLC system comprises four key modules:

• CTO-10ASvp Column Oven
• Block heating mechanism controls temperature from –15°C below ambient to 60°C
• High-precision thermistor with dual-point calibration ensures accurate temperature regulation
• Spacious interior accommodates column plus manual injector, gradient mixer, valves, detection cell block, and reaction coil

• LC-10ADvp Solvent Delivery Pump
• Dual reciprocating 10 µL plungers deliver pulse-free and stable flow, ideal for sensitive detectors (RI, conductivity, electrochemical, MS)
• Pumping modes: constant flow and constant pressure
• Flow rate range: 0.001 to 9.999 mL/min with ±2% or ±2 µL/min accuracy
• Pressure range: 1 to 392 Bar with ±0.3% pressure stability

• DGU-20A5 Prominence Degasser
• Five degassing channels for autosampler rinse solutions
• Compact design with low internal volume of 380 µL
• Operating temperature range: 4°C to 35°C

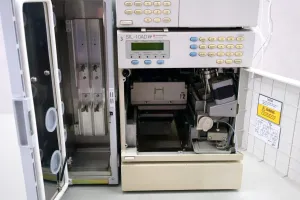

• SIL-10ADvp Auto Injector
• Injection volume range: 0.1 µL to 500 µL with 0.3% C.V. at 10 µL injection volume
• Precise fluid control with 6 nL steps ensures reproducibility and linearity
• Features sample needle rinsing inside/outside before and after injection to minimize carryover
• Supports GLP/GMP compliance and customized continuous analysis

General Specifications:

• Voltage: 220–240 V
