Waters 2996 Photodiode Array Detector with 4-40°C Operating Range

UsedWatersHPLC detectorsUnited States

€2,229.73excl. VAT

In stock

Can't find what you're looking for?

make
Waters
hertz
50Hz/60Hz
voltage
120V/220V
includes
Power cord included |
warranty
30-Day Warranty On Part
All 12 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 12

Brands
Waters
New/Used
Used
make
Waters
hertz
50Hz/60Hz
weight
29.0 Lb
voltage
120V/220V
includes
Power cord included |
warranty
30-Day Warranty On Part
dimensions
23.0in x 12.0in x 8.0in
shipping_type
Freight
item_condition
Good
manufacturing_date
Does Not Apply

Product description

Photodiode array detector for chromatography with 190-800 nm range, 1 nm accuracy, and compliance-ready design.

The Waters 2996 Photodiode Array (PDA) Detector is designed for precise analytical and preparative chromatographic separations featuring:

  • Spectral analysis: Enhances component recognition and homogeneity assessment
  • Compliance: Meets FDA Electronic Records and Electronic Signatures Rule standards
  • Linearity: 5% over -0.1 to 2.0 AU range
  • Spectral resolution: 1.2 nm per photodiode
  • Baseline noise: 5 x 10⁻⁵ AU peak-to-peak
  • Drift rate: 1 x 10⁻³ AU/hour at 254 nm (post warm-up)
  • Wavelength: Accurate to 1 nm across 190-800 nm range
  • Operating conditions: 4 to 40°C temperature, 20-80% non-condensing humidity

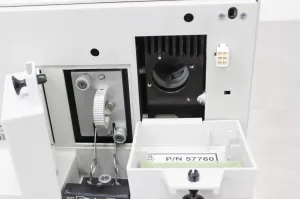

  • Flow cells: Multiple path lengths available — Standard: 10 mm, Semi-preparative: 3 mm, Microbore: 6 mm, Inert: 10 mm
  • Weight: 15.79 kg (34.8 lbs)
  • Dimensions: 70.1 cm x 36.58 cm x 24.38 cm (27.6" x 14.4" x 9.6")

Harmonized Code 9027.30.0000 classifies the device as spectrometers and spectrophotometers, appropriate for high-precision spectral chromatographic applications.
