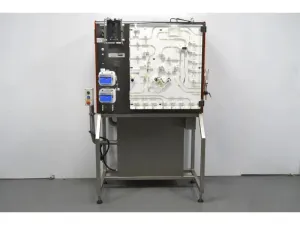

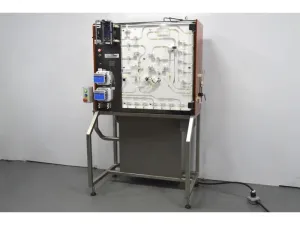

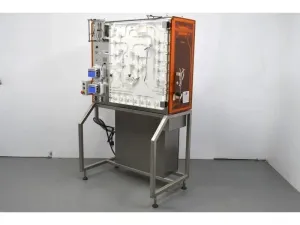

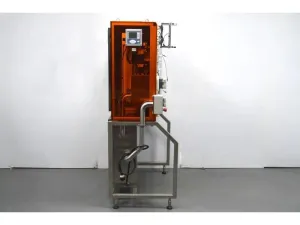

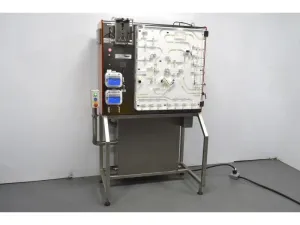

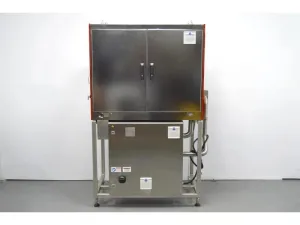

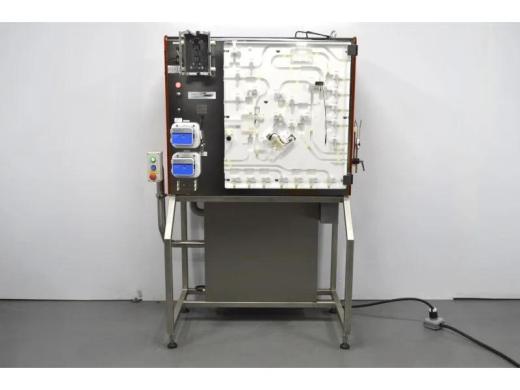

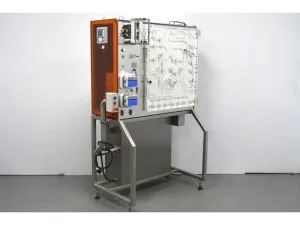

Verdot FlexiPro Chrom Single-Use Process Chromatography Skid

Verdot FlexiPro Chrom is a single-use process chromatography skid designed for scalable bioprocessing, protein purification, and chromatography-based purification workflows. The skid supports capture chromatography, intermediate purification, polishing chromatography, buffer preparation, and inline dilution.

System configuration

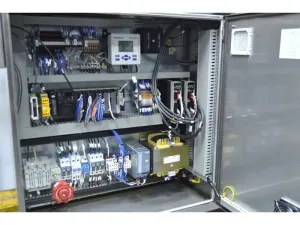

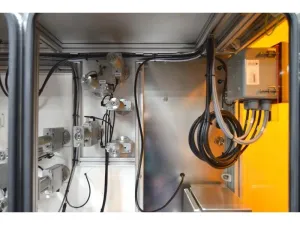

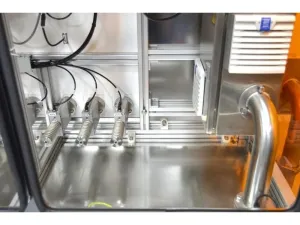

• Stainless steel skid construction with an enclosed IP65-rated electrical cabinet

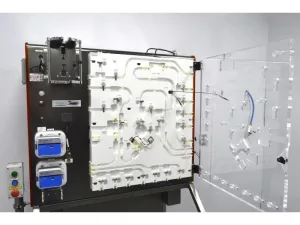

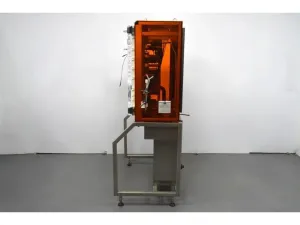

• Transparent amber safety enclosure with external flow-path routing panel

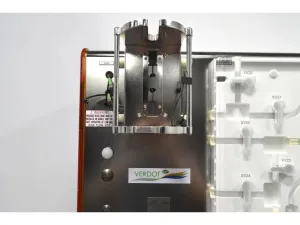

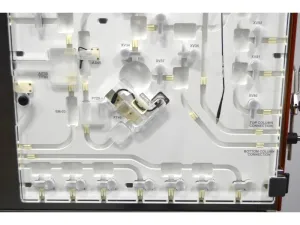

• Single-use chromatography flow-path mounting system

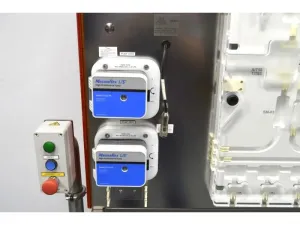

• Dual Masterflex L/S High-Performance peristaltic pump heads, Model 77252-70
• Rosemount 1057 analytical transmitter

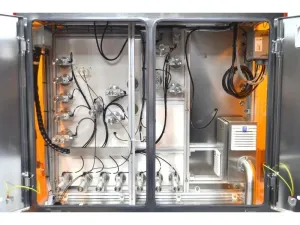

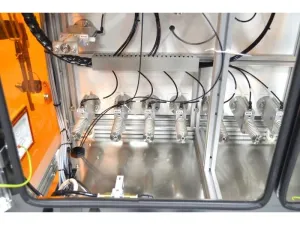

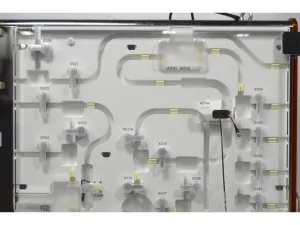

• Integrated pneumatic pinch-valve manifold

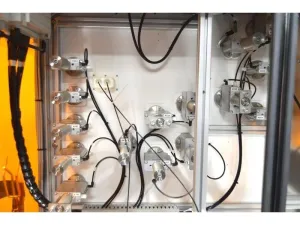

• Connection points for pressure, conductivity, pH, flow, and air sensors
• Multiple process inlet and outlet connections
• Emergency stop and local operator controls
• PLC-based internal control architecture
• Air-assisted valve actuation
• Adjustable leveling feet

Technical specifications

• Flow range: 0.6 to 560 LPH, depending on the installed Flow Kit
• Operating pressure: Up to 4 bar at the column inlet
• Flowmeter accuracy: ±2% of full scale
• Dilution accuracy: ±4% of measured value
• Conductivity range: 1 µS/cm to 500 mS/cm
• pH range: pH 3 to 10
• Pneumatic valve operating pressure: 6 bar
• Air sensor: Non-invasive design
• Power: 115 VAC, single phase
• Dimensions: 1100 × 1280 × 670 mm
• Weight: 320 kg
• Manufacture year: 2021
• Serial number: 21-SKD-1350

The FlexiPro Chrom provides a compact skid-mounted platform for single-use chromatography and purification operations. Its rapid-changeover flow-path architecture and integrated process instrumentation are suited to biopharmaceutical production pipelines, biotechnology research, and scalable protein processing.

Condition and sale information

• Functional status and completeness have not been verified.
• Configuration is based on visual inspection and the manufacturer’s default configuration.
• Listed accessories and components are included only as shown in the photographs.
• In-house testing status: Untested
• Consumables, including chromatography columns and column packing, are required for operation.
• Manufacturer configuration may be required before use.
• Sold as-is due to the lack of consumables and inability to complete full testing.
