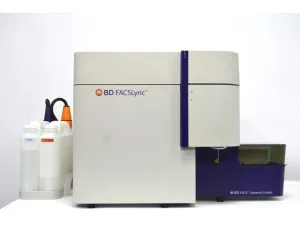

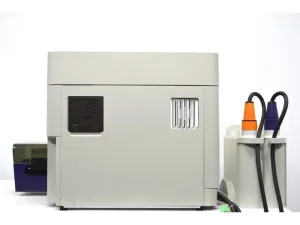

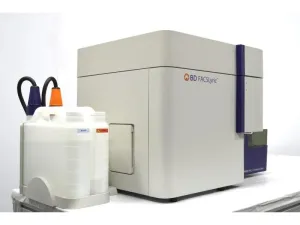

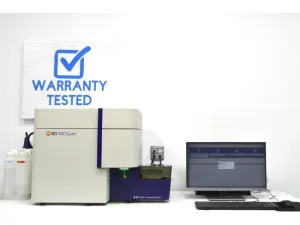

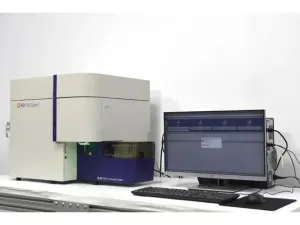

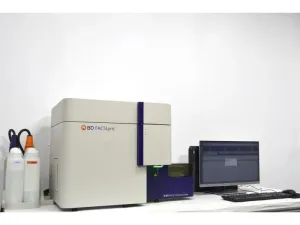

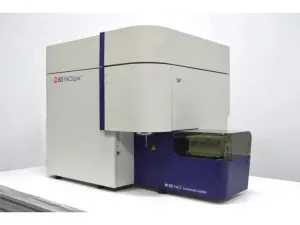

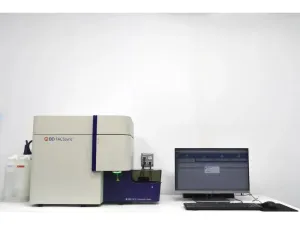

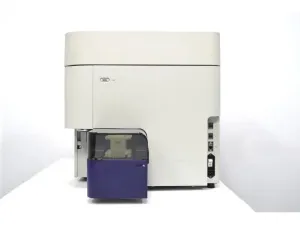

BD FACSLyric IVD Flow Cytometer with 3 Lasers, 10-Color, 12-Detector Configuration and 30-Tube Universal Loader

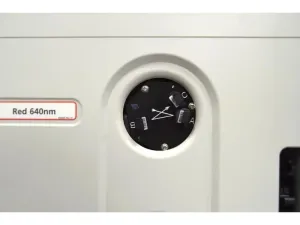

The BD FACSLyric IVD Flow Cytometer is a high-performance clinical flow cytometry system designed for intricate multi-parametric cellular analysis in biotechnology, molecular diagnostics, and immunophenotyping. It integrates a 3-laser excitation system (488 nm Blue, 640 nm Red, 405 nm Violet) enabling simultaneous detection of 10 fluorescence parameters across 12 detector channels, delivering precise data acquisition critical for applications such as cell cycle analysis, biomarker detection, and high-throughput screening.

Key technical features include:

• Lasers and Detection: Three laser sources delivering well-defined fluorescence excitation; fluorescence sensitivity thresholds of FITC <85 MESF and PE <20 MESF ensure reliable detection of low-abundance markers.

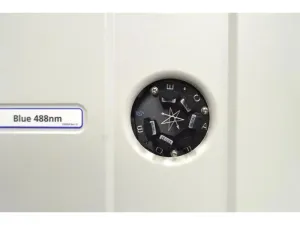

• Detector Configuration: 12 photomultiplier tube (PMT) detectors and photodiode forward scatter (FSC) allow detailed granularity and cell sizing analysis. Laser-to-channel allocation includes Blue/4, Red/3, Violet/3.

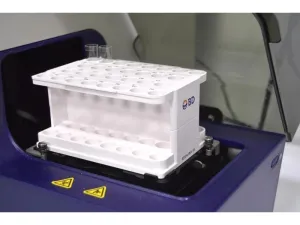

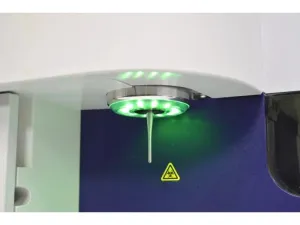

• Sample Handling: Automated 30-tube universal loader compatible with 12 x 75 mm tubes and multi-well plates (96–384 wells), facilitating high-throughput workflows essential for bioprocessing and synthetic biology research.
• Flow Rates: Adjustable sample flow ranging from 12 µL/min to 120 µL/min with a high-sensitivity mode at 50 µL/min, suitable for sensitive cell population analysis.

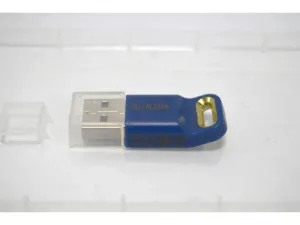

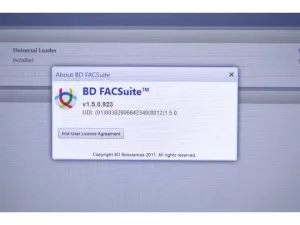

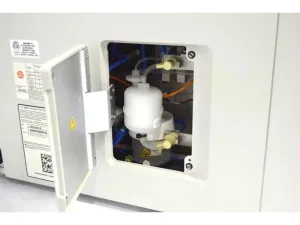

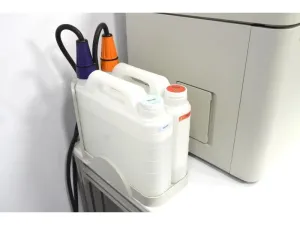

• Software and Hardware: Includes FACSSuite software with license dongle, integrated fluidics system, and compact footprint (63.2 x 57.9 x 57.9 cm), optimized for laboratory space efficiency.
• Quality and Calibration: Comprehensive testing includes fluidics decontamination, laser power and stability verification, baseline & performance QC with bead standards, ensuring reproducible coefficient of variation (CV) metrics across fluorescent channels.

This system is widely adopted in biomedical engineering, clinical diagnostics, and biopharmaceutical production pipelines, where robust, reproducible, and multiplexed flow cytometry data are critical. The BD FACSLyric supports molecular diagnostic workflows and biomanufacturing quality control with automated sample handling and precise optical alignment. Its advanced fluidics and optics design minimizes electronic noise and spectral cross-talk, essential for fluorescence analysis and gene editing research.

Built for both research and clinical environments, the instrument includes safety features for In Vitro Diagnostic (IVD) use and operates on 100–240 VAC power. Supported by comprehensive servicing, warranty, and optional installation and training, this flow cytometer meets the needs of high-demand laboratories and research institutions.

Primary keywords: BD FACSLyric flow cytometer, multiparameter flow cytometry, clinical flow cytometer, automated sample loader Long-tail phrases: widely used in immunophenotyping and cell cycle analysis, critical in biopharmaceutical production pipelines, essential for molecular cloning workflows, reliable fluorescence cytometry for biomarker detection, high-throughput flow cytometry for drug discovery

This BD FACSLyric system offers a mature platform combining precision optics, automated sample management, and extensive detector channels to support complex multiparameter fluorescent analysis essential in advanced biotechnology and clinical diagnostics fields.
