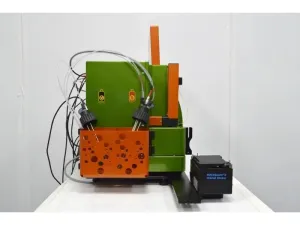

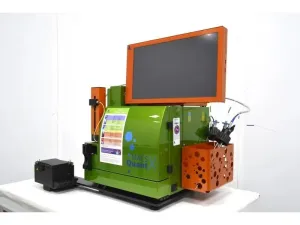

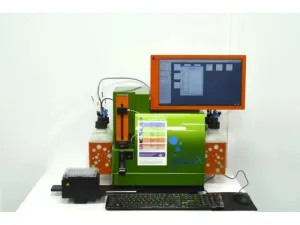

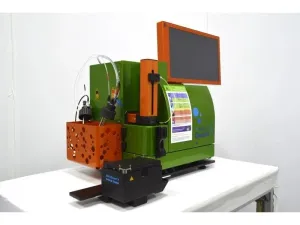

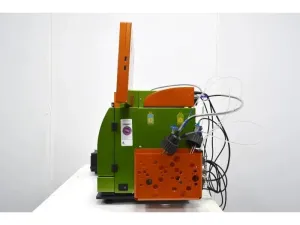

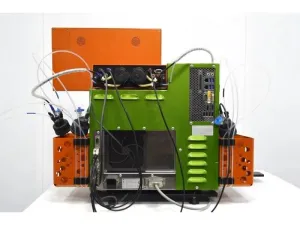

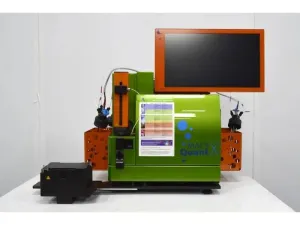

Miltenyi MACSQuant X Analyzer Multiparametric Flow Cytometer with Orbital Shaker and Buffer Supply Station

The Miltenyi MACSQuant X Analyzer is a multiparametric flow cytometer designed for comprehensive fluorescence and scatter-based cellular analysis in biotechnology, immunophenotyping, and clinical diagnostics. Equipped with three lasers (405 nm violet, 488 nm blue, and 640 nm red) and eight-color detection across ten detectors, this system enables detailed cellular profiling critical in molecular diagnostics and bioprocessing workflows.

Key features include:

• Optics and Detection:
• 3 excitation lasers: violet (405 nm), blue (488 nm), red (640 nm)
• 8 simultaneous colors detected using 10 photodetectors
• Forward scatter (FSC) and side scatter (SSC) channels for particle sizing and granularity
• Laser channel configuration supports fluorochromes like FITC, PE, PerCP, APC, PE-Vio770, APC-Vio770, VioBlue, and VioGreen
• Fluorescence sensitivity: MESF (Mean Equivalent Soluble Fluorochrome) with coefficients of variation <5% (FITC < 200 MESF, PE <100 MESF, APC <150 MESF)
• Max event rate up to 15,000 events/sec ensures high-throughput data acquisition

• Sample Handling and Throughput:
• Supports multiple sample types including 384- and 96-well plates (U, V, flat, and deep wells), 5 mL FACS tubes, and Eppendorf tubes
• Adjustable flow rate between 25–100 µL/min or automated to maintain constant event rates (500, 1000, 2000 events/sec)
• Sample uptake volume range: 1–5000 µL

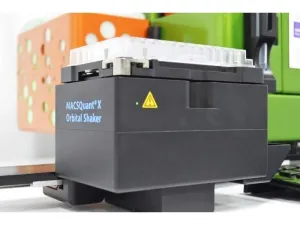

• Integrated MACSQuant X Orbital Shaker provides 2D orbital mixing (200–3000 rpm) enabling homogenous sample suspension, specifically beneficial in multiplexed bead and rare cell analysis assays

• Hardware and Software Integration:
• Compact footprint (81.4 × 47.4 × 42.7 cm with shaker) and 50 kg weight facilitate lab-space efficiency

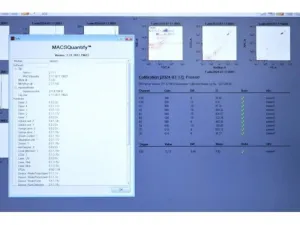

• Comes with MACSQuantify™ acquisition software and a complimentary 1-year subscription to De Novo FCS Express 7 Analysis software (RUO), providing advanced data interpretation tools including gating, kinetic analysis, and publication-quality reporting
• Compatible with multiple file formats for seamless data integration across laboratories

• Applications:
• Immunophenotyping and cell cycle analysis
• Apoptosis detection and rare cell quantification
• Multiplexed bead assays widely used in synthetic biology and molecular cloning workflows
• Critical in biopharmaceutical production pipelines and biomedical engineering research

• Maintenance and Support:
• Thorough preventive maintenance programs including bead calibration tests and laser power stability checks ensure consistent, reproducible results

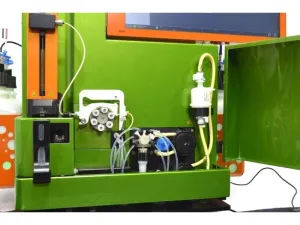

• Fully serviced instrument with fluidics system decontamination, valve and pump verification, plus optical alignment guarantees operational reliability
• Warranty and after-sales technical support available with optional on-site or remote training to accelerate user proficiency

This system is tailored for researchers requiring high-throughput, precise flow cytometric analysis essential in biotechnology fields such as gene editing, molecular diagnostics, and bioprocessing, offering robust performance and automation to support complex experimental designs and clinical research demands.
