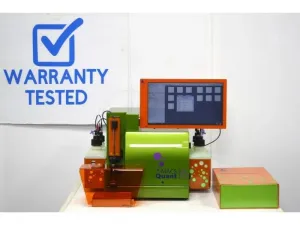

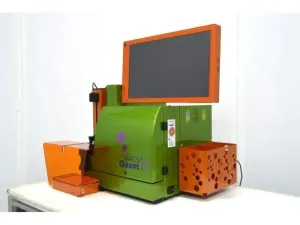

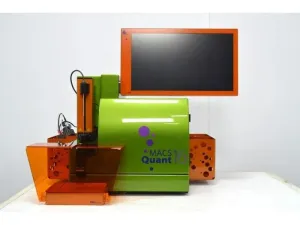

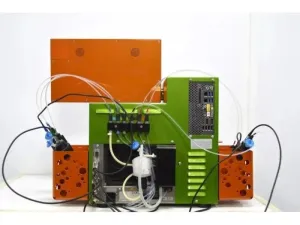

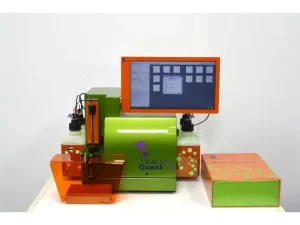

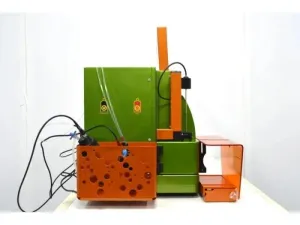

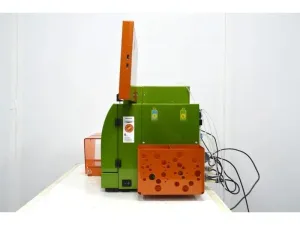

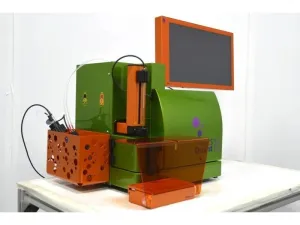

Miltenyi MACSQuant Analyzer 16 Flow Cytometer with 3 Lasers, 14 Colors and MiniSampler Unit

The Miltenyi MACSQuant Analyzer 16 Flow Cytometer is a benchtop, multiparametric flow cytometry system designed for high-throughput and multicolor cellular analysis, widely used in immunophenotyping, molecular diagnostics, and biotechnological research applications such as gene editing and cellular profiling.

• Optical Configuration:
• 3 solid-state lasers: 405 nm (violet), 488 nm (blue), and 638 nm (red)
• Simultaneous detection of 14 fluorescent colors via 16 highly sensitive detectors
• Forward Scatter (FSC) and Side Scatter (SSC) channels enable precise particle sizing and granularity assessment
• Specific laser channels cover a broad spectrum with optimized bandpass filters (e.g., V1 450/50 nm, B1 525/50 nm, R1 667/30 nm) supporting complex multicolor panels

• Sample Handling and Throughput:
• Supports single tubes and 96-well microplates via integrated MiniSampler unit
• Automated flow rate control from 25 to 100 µL/min to maintain event rates of 500, 1000, or 2000 events/sec
• Maximum data acquisition up to 15,000 events/sec allowing rapid sample processing for bioprocessing and clinical diagnostics workflows

• Performance Metrics:
• Fluorescence sensitivity measured by MESF (Molecules of Equivalent Soluble Fluorochrome) with coefficients of variation (CV) below 5%: FITC < 110 MESF, PE < 75 MESF, APC < 100 MESF
• Absolute cell count accuracy within ±7%, reproducibility CV <5%
• Automated startup, shutdown, and cleaning routines ensure consistent performance and reduce downtime

• Software and Data Analysis:
• Includes a complimentary 1-year subscription to De Novo FCS Express 7 RUO software for advanced data analysis
• Software features extensive file format compatibility (FCS, LMD, CSV, BD FACSDiva, Cytobank, and more) suitable for synthetic biology, molecular cloning, and biopharmaceutical research
• Provides sophisticated tools for gating, statistical analysis, kinetic studies, and customizable, publication-quality reporting
• Real-time data visualization and secure cloud collaboration enhance workflow integration in biomedical engineering and clinical diagnostics

• Physical and Operational Specs:
• Dimensions with MiniSampler: 70 × 50 × 39.5–52 cm (W × D × adjustable H)
• Weight approximately 51.5 kg (113.5 lbs)
• Low sheath fluid consumption between 2 and 10 mL/min optimizing reagent use

• Maintenance and Quality Assurance:
• Comprehensive service including fluidics decontamination, optical alignment, detector calibration, and leak checks performed before shipping
• Warranty with options for extended coverage and on-site or remote training support available
• Ideal for research institutions, universities, and biopharmaceutical companies looking for reliable, fully tested flow cytometry solutions

This system is critical for *molecular diagnostics, synthetic biology research, immunophenotyping, and biomanufacturing* workflows where precise multiparameter cellular characterization is essential. Its combination of multicolor detection, automated sample handling, and advanced analysis software makes it widely adopted in biotechnology and biomedical research environments.
