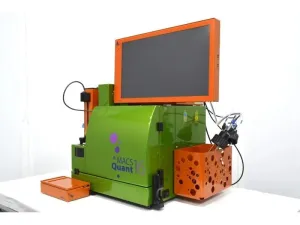

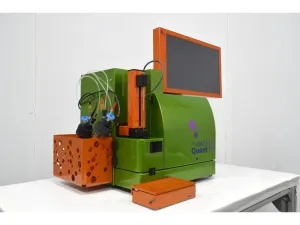

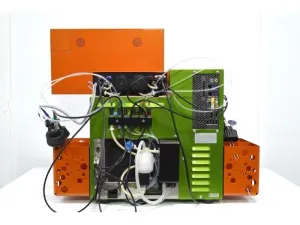

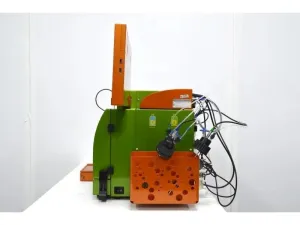

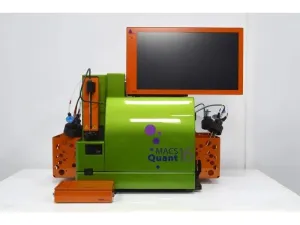

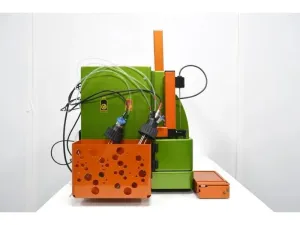

Miltenyi MACSQuant Analyzer 16 Multiparametric Flow Cytometer with 3 Lasers, 16 Detectors, Mini-Sampler & Buffer Supply Station

The Miltenyi MACSQuant Analyzer 16 is an advanced multiparametric flow cytometer designed for high-sensitivity fluorescence detection and comprehensive cell analysis in biomedical and biotechnology research. Equipped with 3 lasers (405 nm violet, 488 nm blue, 638 nm red), it supports simultaneous acquisition of 14 fluorescence colors across 16 detectors, enabling detailed immunophenotyping, cell cycle analysis, apoptosis detection, cytokine profiling, and rare cell population analysis.

Key technical features include:

• Optical configuration:
• Violet laser channels (5): 450/50 nm, 525/50 nm, 579/34 nm, 615/20 nm, 667/30 nm
• Blue laser channels (6): 525/50 nm, 579/34 nm, 615/20 nm, 667/30 nm, 725/40 nm, 785/62 nm
• Red laser channels (3): 667/30 nm, 725/40 nm, 785/62 nm
• Sample handling: Supports single tubes and automated Mini-Sampler for tubes or 96-well microplates, with adjustable flow rates from 25 to 100 µL/min and automated flow rates maintaining 500, 1000, or 2000 events/second
• Performance: Maximum event acquisition rate up to 15,000 events/second; fluorescence sensitivity measured by MESFs with CV <5% (FITC <200, PE <100, APC <150); absolute cell count accuracy ±7% with CV <5%
• Compact design: Dimension with MiniSampler 70 × 50 cm footprint, adjustable touchscreen height 39.5–52 cm; weight approx. 51.5 kg

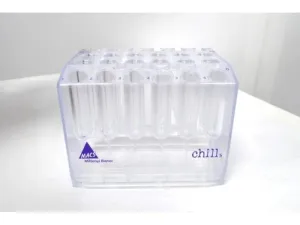

The system includes the MACSQuant Buffer Supply Station for efficient sheath fluid management, MACS Chill 5 Rack, and accessories such as bottle caps with liquid level sensors, keyboard, mouse, and communication cables.

This flow cytometer is bundled with a complimentary 1-year subscription to De Novo FCS Express 7 RUO software, offering advanced analysis capabilities tailored to research fields demanding sensitive, reliable flow cytometry data processing. The software provides a user-friendly interface, compatibility with diverse file formats, real-time data visualization, automated reporting, and cloud-enabled collaboration—features essential for workflows in molecular diagnostics, gene editing, synthetic biology, and bioprocessing.

The Miltenyi MACSQuant Analyzer 16 is widely adopted in biotechnology and clinical research laboratories for complex applications such as:

• Multiparametric immunophenotyping in translational medicine
• Cell cycle and apoptosis studies critical for cancer research
• Cytokine measurement in immunology and vaccine development
• Rare cell detection important in hematology and stem cell research
• Evaluation of transfection efficiency in gene editing and synthetic biology

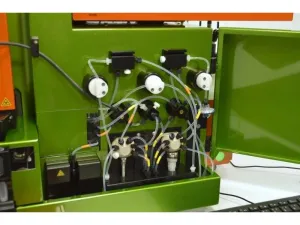

Comprehensive functional verification includes fluidics cleaning, laser alignment with calibrated power measurement, detector calibration using MACSQuant Calibration Beads, and automated quality control to ensure reproducibility and low electronic noise. Detailed warranties and optional onsite setup and training support are available, critical for maintaining instrument performance in demanding biotechnology workflows.

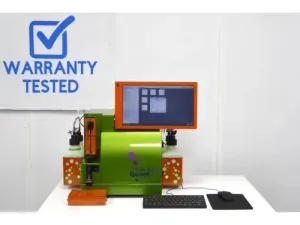

This pre-owned instrument provides reliable, cost-effective flow cytometry solutions with full technical testing and aftersales support, making it ideal for laboratories seeking high-throughput multiparametric cell analysis essential for biomedical engineering and molecular biology research.
