Axon MultiClamp 700A Dual-Channel Patch Clamp Amplifier System with CV-7A Headstages, Digidata 1440A Digitizer, and pCLAMP 10

UsedAxon InstrumentsData acquisitionUnited States

Price on request

In stock

Can't find what you're looking for?

Stock
In Stock
Product Code
SM100019-1440A
Number of Channels
2 channels
Recording Technique
Patch Clamp
Max Sample Rate
0.25 MS/s
All 11 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 11

Brands
Axon Instruments
New/Used
Used
Stock
In Stock
Product Code
SM100019-1440A
Number of Channels
2 channels
Recording Technique
Patch Clamp
Max Sample Rate
0.25 MS/s
System Components
Amplifier, Data Acquisition
ADC Resolution
16-bit
Interface
USB
Detail
Software Included

Pre-Owned

Product description

Dual-channel patch clamp system with two CV-7A headstages, 250 kHz digitizer, 16-bit ADC, and pCLAMP 10.

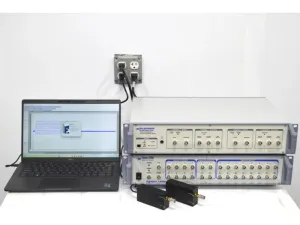

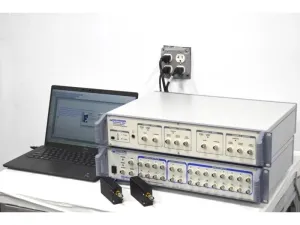

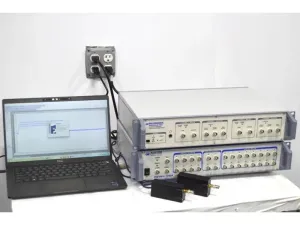

The Axon MultiClamp 700A dual-channel patch clamp amplifier system is configured for advanced intracellular electrophysiology, paired-cell recordings, and dual-patch experiments. The package includes two CV-7A headstages, an Axon Digidata 1440A digitizer, a pre-configured data acquisition PC, and a pCLAMP 10 license dongle.

Amplifier configuration

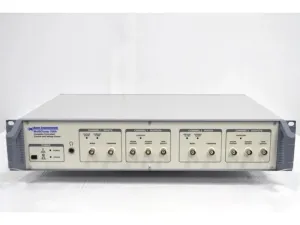

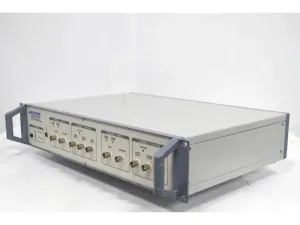

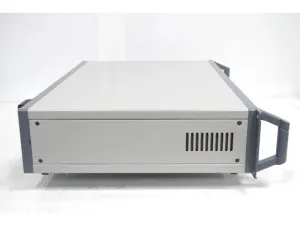

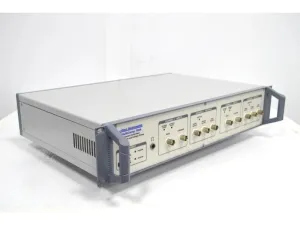

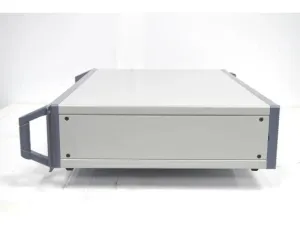

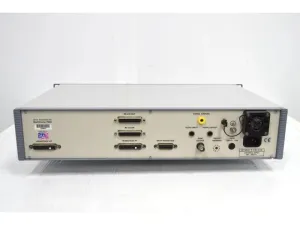

  • Axon Instruments MultiClamp 700A microelectrode amplifier
  • Dual-channel operation with two independent signal paths

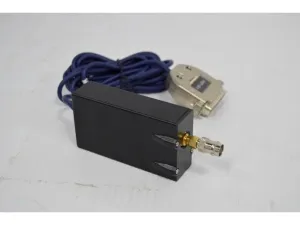

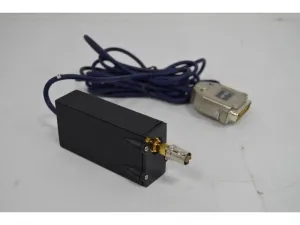

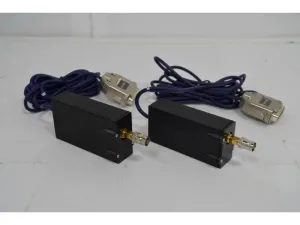

  • Two CV-7A low-noise headstages with wide dynamic range
  • Independent voltage-clamp and current-clamp configuration for each channel
  • Supports dual-cell recordings, simultaneous I/V clamp, and dual-mode operation
  • Automated mode switching through MultiClamp Commander software
  • Built-in capacitive and series-resistance compensation
  • User-defined gain, filtering, and holding-potential settings
  • Front-panel and software control

Digitizer configuration

  • Axon Digidata 1440A data acquisition digitizer
  • USB 2.0 computer interface
  • Sampling rate up to 250 kHz per channel
  • 16-bit analog-to-digital conversion
  • 8 analog input channels
  • 4 analog output channels
  • 8 digital input and 8 digital output lines
  • Suitable for synchronized electrophysiology data acquisition and stimulus delivery

Software and workstation

  • Pre-configured electrophysiology data acquisition PC
  • pCLAMP 10 or later

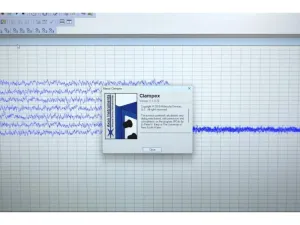

  • Clampex for data acquisition
  • Clampfit for data analysis
  • MultiClamp Commander for amplifier control
  • USB license dongle included
  • Real-time acquisition and analysis
  • Seal test, series-resistance measurement, and leak subtraction
  • Synchronized stimulation and digital event control
  • Data export and graphical analysis tools

This patch clamp amplifier system is suitable for dual whole-cell recordings, paired-neuron electrophysiology, intracellular measurements, optogenetics, pharmacological response profiling, and simultaneous voltage and current measurements. It can support research workflows in neuroscience, cellular physiology, biotechnology, and molecular biology, including experiments requiring synchronized electrophysiological acquisition and stimulation.

Included cables consist of headstage interface cables, a USB 2.0 cable for digitizer-to-PC connection, signal cables, and power cables.
