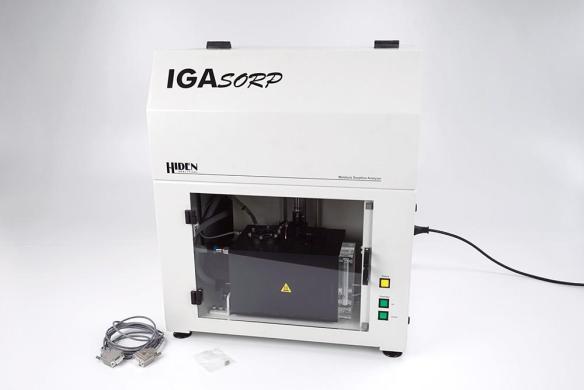

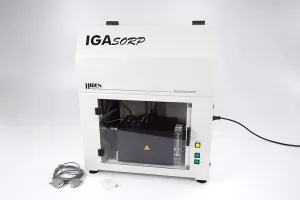

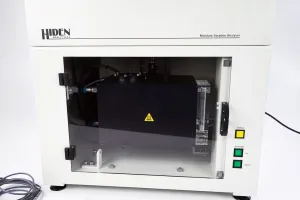

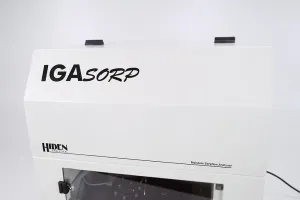

Hiden Isochema IGAsorp Dynamic Vapor Sorption Analyzer

The Hiden Isochema IGAsorp Dynamic Vapor Sorption Analyzer is a compact, fully automated benchtop instrument for gravimetric sorption measurements using dynamic flow technology. It measures water and organic vapor uptake isotherms and kinetics under precisely controlled humidity and temperature conditions.

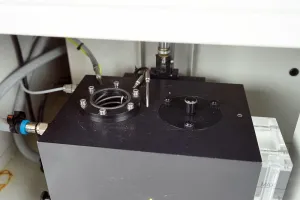

An ultra-sensitive microbalance continuously records sample mass changes while humidity is generated by mixing wet and dry gas streams. Humidity and temperature are regulated at the sample position, supporting stable and reproducible sorption measurements for pharmaceutical, biotechnology, polymer, packaging, electronics, and natural-materials research.

Measurement and analysis capabilities

• Dynamic vapor sorption measurements using the IGA method
• Sorption kinetics and equilibrium isotherm analysis
• Real-time kinetic data analysis and equilibrium trend prediction
• Cyclic and lifetime studies
• Moisture content and water activity determination
• Hydrate formation and dehydration analysis
• Amorphous phase detection and quantification
• Diffusion coefficient and permeation-rate analysis
• Moisture vapor transmission rate (MVTR/WVTR) studies
• Testing with water vapor and organic vapors

Materials and applications

• Pharmaceuticals and biotechnology materials
• Polymers, textiles, and packaging films
• Porous materials, clays, wood, and natural fibers
• Food products and other consumables
• Cement, timber, insulation, adhesives, and other construction materials
• Electronics and fuel-cell proton exchange membranes
• Product stability, hydrophobicity, shelf-life, and quality-control studies
• Molecular and materials research requiring controlled moisture sorption data

Technical specifications

• Balance capacity: 5 g
• Weighing range: 25, 200, or 1000 mg fixed; user-selectable weighing range available as an option
• Resolution: From 0.05 microgram
• Weight stability: Nominally ±1 microgram per week
• Humidity control range: 0–98% RH
• Absolute humidity calibration accuracy: ±1% from 0–90% RH; ±2% from 90–100% RH
• Humidity regulation accuracy: ±0.01% RH
• Minimum humidity control increment: 0.02% RH
• Gas supply: Dry air, nitrogen, or helium
• Maximum gas flow rate: 500 mL/min
• Temperature measurement range: 5–50 °C
• Temperature regulation accuracy: ±0.01 °C

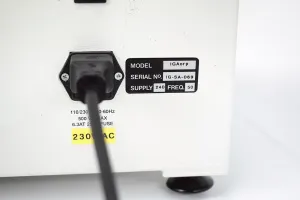

• Power requirements: 240 V, 50 Hz

The instrument includes built-in user conformance tests for weight, temperature, and humidity verification. A 21 CFR Part 11-compliant software option with three user privilege levels is available for regulated laboratory workflows.

Included items

• Hiden Isochema IGAsorp Dynamic Vapor Sorption Analyzer
• Connecting cable

Condition

• Very good cosmetic, technical, and working condition
• 100% function-tested and ready for use
