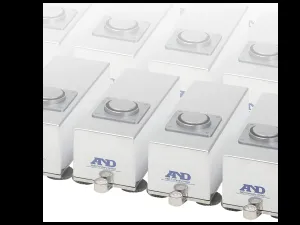

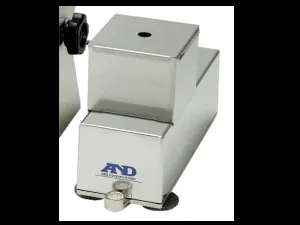

A&D AD-4212B-23 Micro Weighing Module Balance, 21 g Capacity, 0.001 mg Readability

The A&D AD-4212B-23 is a high-resolution micro weighing module balance designed for precision weighing in laboratory, production, quality control, analytical chemistry, and biotechnology workflows. It provides a 21 g maximum capacity with 0.001 mg readability and uses A&D’s Compact Super Hybrid Sensor (C-SHS) for precise measurement.

• Capacity: 21 g
• Readability: 0.001 mg
• Stabilisation time: 12 seconds
• Linearity: ±0.01 mg
• Repeatability: 0.003 g for the 0–30 range and 0.004 g for 10–21
• Weighing pan: 34 mm
• Weighing unit: Stainless steel, SUS304 body
• Protection rating: IP65
• Data transmission: Up to 50 measurements per second
• Interface: Bi-directional RS-232C, 600–19200 bps
• Comparator output: 3- or 5-level contact output with buzzer
• External contact input: Re-Zero and Print functions
• Measurement units: Milligram, gram, ounce, troy ounce, metric carat, momme, pennyweight, and grain
• Functions: Counting, animal weighing, data memory, clock, calendar, and auto power operation

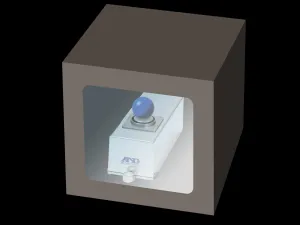

A patented shock absorber beneath the pan helps protect the sensor from disturbances. The compact weighing module can be integrated with a wall- or panel-mounted display, a slim 80 mm configuration, custom weighing pans, or vacuum chamber weighing systems. These capabilities support precise sample measurement in molecular biology, bioprocessing, formulation, and other research and manufacturing applications.
