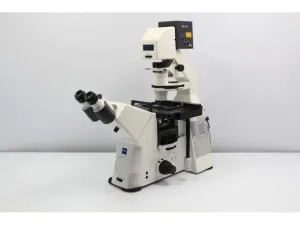

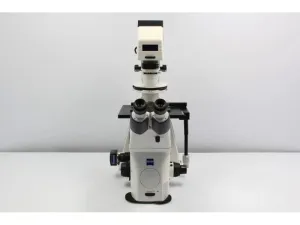

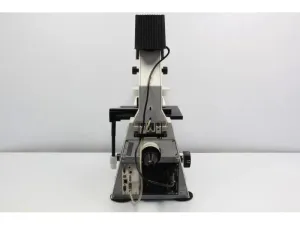

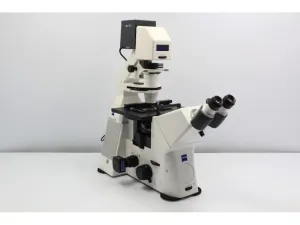

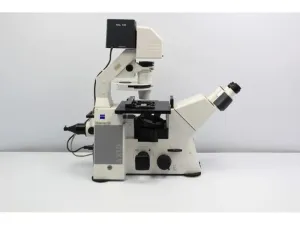

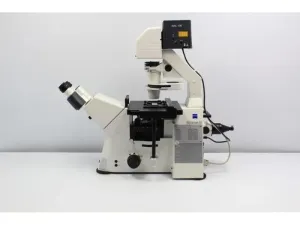

Zeiss Observer D1 Inverted Fluorescence Microscope with Motorized Filter Turret and CMOS Camera

The Zeiss Observer D1 Inverted Fluorescence Microscope is a research-grade platform optimized for advanced fluorescence and brightfield microscopy, widely used in cellular biology, biotechnology, molecular diagnostics, and biomedical engineering applications. It features a fully motorized 6-position fluorescence filter cube turret equipped with new filter sets tailored for fluorochromes including DAPI, FITC, Texas Red, TRITC, and Cy5, ensuring critical compatibility for fluorescent labeling and live-cell imaging.

Key technical specifications include:

• Microscope Base & Head: Zeiss Observer D1 inverted base with mechanical Z-axis and binocular head offering ergonomic viewing through two eyepieces.
• Illumination: EXFO X-Cite 120W metal halide fluorescence light source through a built-in light path for uniform excitation; 100W halogen brightfield illumination integrated into the base.
• Objectives & Condenser: Coded 6-position objective turret loaded with Plan-Neofluar objectives (5x/0.15, 10x/0.30, 20x/0.50 NA) and a standard mechanical condenser for precise illumination control.

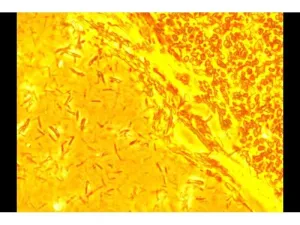

• Camera & Imaging: Includes a Bestscope 8.3MP color CMOS camera with C-mount adapter, delivering high-resolution image acquisition suitable for quantitative fluorescence intensity measurements and video capture. Imaging software supports annotation, calibration, line segment measurements, and raster image processing, essential in molecular and cellular research workflows.
• Motorization & Automation: Features motorized filter cube turret; additional motorized options such as XY motorized stages and high-speed shutters are available for automation in complex bioprocessing or high-throughput imaging.

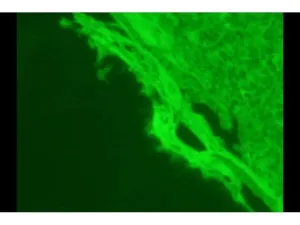

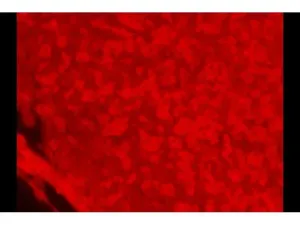

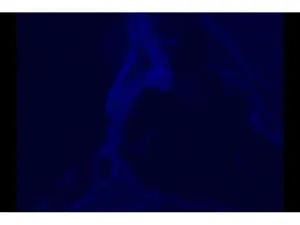

• Filters: Supplied with three customizable new fluorescence filter sets compatible with a broad spectrum of fluorescent dyes (e.g., DAPI/Hoechst/AlexaFluor 350, EGFP/FITC/AlexaFluor 488, TRITC/Cy3/Rhodamine, Texas Red/mCherry, Cy5/AlexaFluor 647) suitable for multicolor fluorescence imaging required in gene editing, synthetic biology, and molecular cloning workflows.

The system supports extensive customization including enhanced fluorescence light sources (LED, xenon), higher magnification apochromatic objectives, additional fluorescence techniques (phase contrast, DIC, polarization), and upgraded imaging cameras (CCD, sCMOS, EMCCD) for improved sensitivity and resolution in biotechnology and clinical diagnostics research.

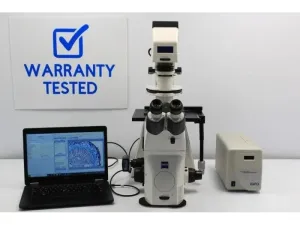

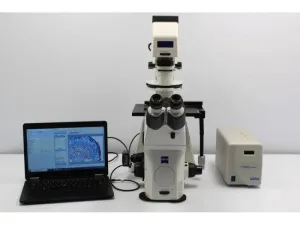

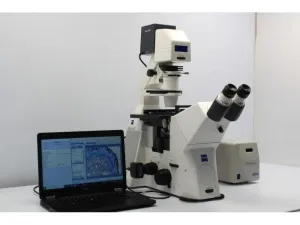

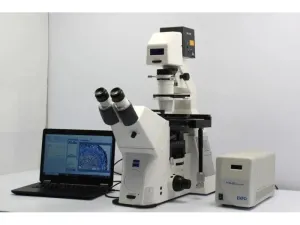

It is widely adopted in biotechnology and biomedical research environments that demand precision fluorescence analysis of live cells, tissue samples, and microplate formats. The included Dell Windows 10 computer and imaging software facilitate comprehensive image acquisition, processing, and data analysis workflows integral to biopharmaceutical production pipelines and molecular biology studies.

This microscope undergoes rigorous preventive maintenance and quality assurance steps, including uniformity and field distortion checks, verified fluorescence intensity at the specimen plane, ensuring reliable performance critical in advanced fluorescence microscopy applications. Remote training and technical consultation are included, providing seamless integration into laboratory bioprocessing and imaging protocols.

The Zeiss Observer D1 serves as a robust, flexible, and fully serviced inverted fluorescence microscope platform essential for researchers in neuroscience, cell imaging, biotechnology, molecular diagnostics, and drug development fields requiring high-resolution fluorescence and brightfield imaging capabilities.
