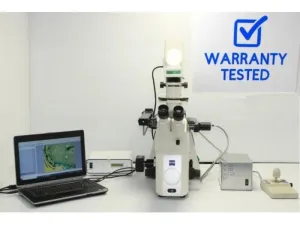

Zeiss Axiovert 200m Motorized Inverted Fluorescence Microscope with Motorized XY Stage and Filter Cube Turret

The Zeiss Axiovert 200m is a motorized inverted fluorescence microscope tailored for advanced biomedical research and biotechnology applications such as molecular diagnostics, gene editing, and live-cell imaging. This system integrates motorized automation across multiple components to facilitate precise, reproducible imaging workflows critical in bioprocessing and synthetic biology research.

Key technical specifications include:

• Microscopy Techniques: Brightfield and fluorescence microscopy with potential for phase contrast, DIC, and polarization add-ons.
• Motorized Components: XY stage, Z-axis drive (automatic parfocality and recall of focus levels), 5-position fluorescence filter cube turret, 6-position objective turret, condenser, and fluorescence light path.
• Fluorescence Illumination: 100 W full spectrum HBO lamp with matched power supply ensuring optimal excitation, supporting dye sets including DAPI, EGFP/FITC, TRITC/Cy3, Texas Red, and Cy5.
• Objectives: Plan-Neofluar series (5x/0.15, 10x/0.30, 20x/0.50), with options for higher magnification and Zeiss Apochromat upgrade for enhanced resolution and contrast.
• Imaging Hardware: High-resolution Bestscope 8.3MP color CMOS camera with C-mount adapter, compatible with Micromanager and ImageJ open-source software for multi-dimensional image acquisition and analysis, including time-lapse, Z-stacking, and motorized XY stitching for microplate or slide scanning.
• Illumination for Brightfield: 100 W halogen lamp with integrated power supply.
• Automation Benefits: Automated Z-focus control for fine-coarse adjustment and saved focus positions, seamless motorized stage movement optimized for multi-slide and bioprocessing plate scans, critical in quantitative fluorescence analysis workflows.

Applications span diverse research domains: cellular and molecular biology, pharmacology, clinical diagnostics, biotechnology, and educational labs. The system facilitates high-resolution live-cell imaging, quantitative fluorescence, and multi-dimensional analysis, essential for biopharmaceutical production pipelines and synthetic biology experimentation.

Additional features and services include:

• Customizable filter sets and light sources (Xenon, Metal Halide, LED) to match fluorochrome requirements.
• Options for upgraded camera systems (CCD, sCMOS, EMCCD) for superior sensitivity and dynamic range.
• Remote or onsite installation and comprehensive training covering microscope operation and software usage.
• Rigorous preventive maintenance, verified optics quality, and fluorescence intensity calibration to ensure operational reliability.
• Warranty and after-sales support tailored to academic and biopharma industry standards.

This Zeiss Axiovert 200m microscope is ideal for laboratories requiring a flexible, motorized inverted fluorescence platform with advanced automation capabilities, widely adopted in molecular biology and biotechnology research for live-cell imaging, multi-dimensional fluorescence microscopy, and quantitative image analysis.
