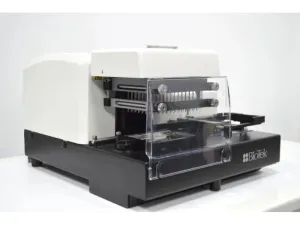

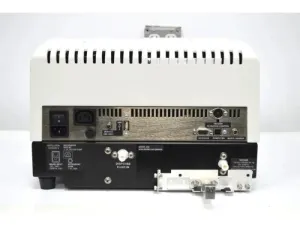

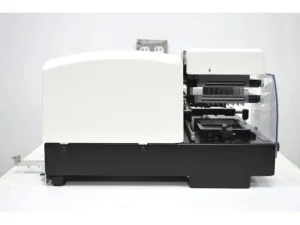

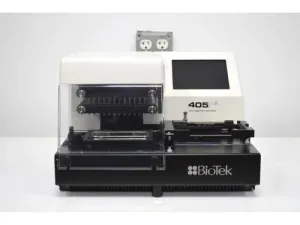

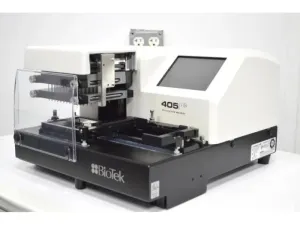

Agilent BioTek 405 Select TS Automated Microplate Washer 405TSUSQ with Verify Technology

Agilent BioTek 405 Select TS 405TSUSQ Microplate Washer

The Agilent BioTek 405 Select TS is an automated microplate washer for precise washing of 96-well and 384-well microplates. It is designed for ELISA, immunoassay, cell-based assay, protein purification, DNA/RNA purification, and drug discovery workflows.

• Manifold: Dual-Action 96-tube manifold, configured as 8 × 12
• Microplate formats: 96-well and 384-well
• Plate profile: Standard
• Volume range: 50–3,000 µL per well
• Dispensing liquids: 1 standard; up to 4 with the optional Valve Module, not included
• Functions: Shaking, soaking, sonicating, dispensing, and aspiration
• Wash speed: 96-well, 3 cycles, 300 µL/well in less than 30 seconds
• Wash speed: 384-well, 3 cycles, 100 µL/well in less than 80 seconds
• Controls: Touchscreen interface with programmable wash protocols
• Technology: Verify Technology, Ultrasonic Advantage, and programmable shaking
• Dimensions (D × W × H): 17 × 14 × 10 in (43.2 × 35.6 × 25.4 cm)
• Weight: 30 lb (13.5 kg)
• Power: 100–240 VAC, 50/60 Hz

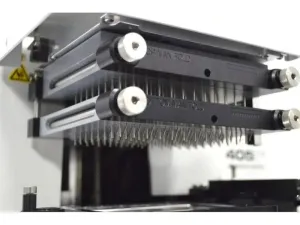

The dual-action manifold provides controlled liquid dispensing and aspiration with low residual volume. The built-in ultrasonic bath supports automated cleaning, maintenance, and clog prevention, helping maintain reliable fluid handling during repeated assay cycles. This microplate washer is suitable for molecular biology, biotechnology, clinical research, biopharmaceutical assay development, and high-throughput screening.

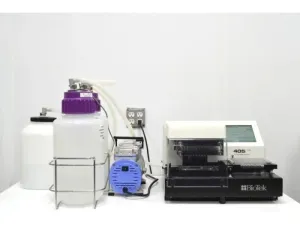

Included equipment

• BioTek 405TSUSQ microplate washer
• Dual-Action manifold
• Plate carrier
• Vacuum pump
• Buffer bottle
• Waste bottle
• Required tubing
• Standard power cable

Optional hardware

• Flat Magnetic Insert for biomagnetic separation
• BioStack 3 Plate Stacker
• BioStack 4 Plate Stacker with de-lidding and re-lidding capability
• Additional buffer bottles
• Additional waste bottles
• Additional 96-tube wash head

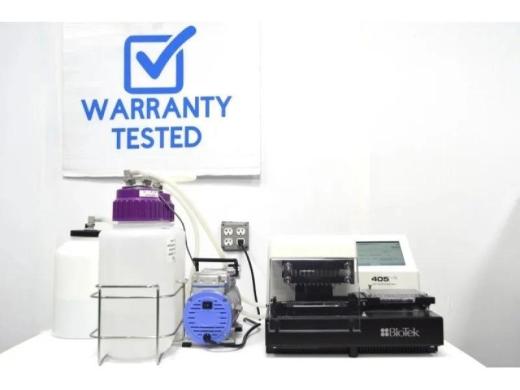

The listed pre-owned instrument was tested for power-on and initialization, touchscreen responsiveness, manifold blockage, priming pump operation, dispensing, aspiration, automated cleaning, sonicator operation, and method creation and editing.
