USI Prism Ultra-Coat 300 In-line Selective Coating System with Ultrasonic Spray and Precision Metering

UsedUSICoatingsUnited States

€11,127.53excl. VAT

In stock

Can't find what you're looking for?

make
USI
hertz
50Hz/60Hz
voltage
220V
includes
Computer with software included | Power cord included |
warranty
30-Day Warranty On Part
All 12 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 12

Brands
USI
New/Used
Used
make
USI
hertz
50Hz/60Hz
weight
900.0 Lb
voltage
220V
includes
Computer with software included | Power cord included |
warranty
30-Day Warranty On Part
dimensions
49.0in x 55.0in x 64.0in
shipping_type
Freight
item_condition
Fair
manufacturing_date
Does Not Apply

Product description

Ultrasonic nozzle-less coating system for PCBs with multi-axis gantry and precision metering pump, 220V, Ethernet controls.

  • Make and Model: USI Prism Ultra-Coat 300 Coating System, sub-model P300-1-250, S/N 200918000001
  • Purpose: Designed for in-line selective conformal coating of printed circuit boards (PCBs) and other substrates using ultrasonic spray technology
  • Coating Technology: Nozzle-less ultrasonic Ultra-Spray combined with T-CAT thin coating application, producing super-thin, uniform, rectilinear films with minimal waste
  • Coating Heads Supported: Configurable with up to two coating heads on a single gantry; supports ILDS dual-mode heads (narrow and wide) and Blade head for large area coverage

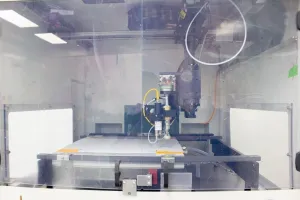

  • Motion Platform: Multi-axis X-Y-Z-theta-phi gantry with ball screw actuators; servo motors on X and Y axes, stepper motor on theta axis for precise motion control

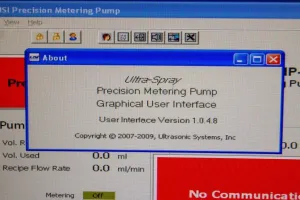

  • Liquid Delivery System: Precision Metering Pump with micro-stepping drive for accurate and repeatable flow; options include dual PMP, recirculation, mixing, and automatic stirring

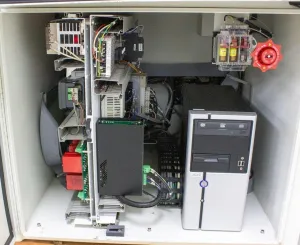

  • Control System: Windows-based Ultra-Coat GUI on included system computer; Ethernet-based motion and I/O control; supports recipe programming for complex patterns such as lines, fills, circles, dots, with repeat up to 999 cycles
  • Operation Modes: Batch, manual conveyor, and in-line conveyor modes compatible with SMEMA protocol for automation integration

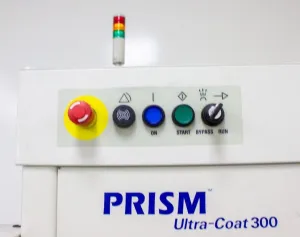

  • Safety Features: Heavy-duty welded steel frame, safety glass viewing panels, IP67-rated work light, home and limit switches for motion safety, and high-flex energy-chain cabling
  • Electrical Specifications: 220 V, 50/60 Hz power supply
  • Physical Dimensions: 49 x 55 x 64 inches (L x W x H); weight approximately 900 lb (shipping 1080 lb)
  • Included Accessories: System computer with Ultra-Coat software, power cord; no manuals or service records included

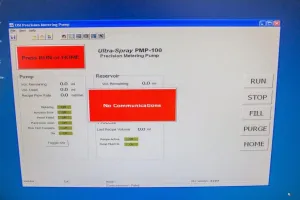

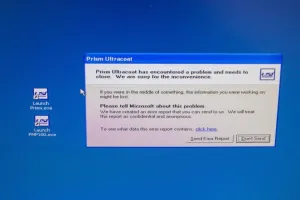

  • Condition: Fair; powers on but communication to motion and I/O controllers failed, software control non-functional
  • Application Fields: Selective conformal coating for electronics including PCBs, semiconductors, medical devices, fuel cells, solar panels, and glass displays
  • Warranty: 30-day parts warranty
  • Country of Origin: United States
  • Harmonized Code: 842489 (Mechanical appliances for projecting, dispersing or spraying liquids or powders, other)
