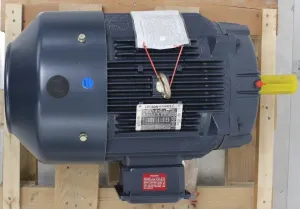

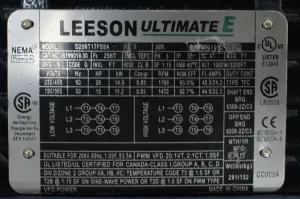

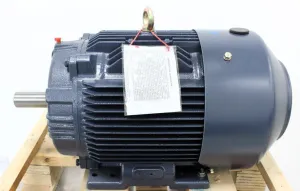

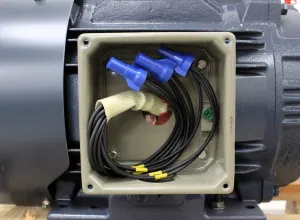

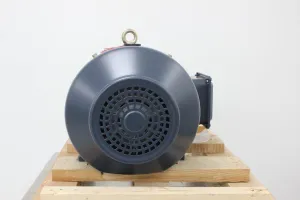

Leeson D256T17FB8A 20 HP 3-Phase 1800 RPM Totally Enclosed Fan Cooled Motor

€2,225.51excl. VAT

In stock

Can't find what you're looking for?

make
Leeson
hertz
60Hz US
voltage
9aff0d9447
warranty
30-Day Warranty On Part
shipping_type
Freight
All 11 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 11

Brands
Leeson
New/Used
Used
make
Leeson
hertz
60Hz US
weight
291.0 Lb
voltage
9aff0d9447
warranty
30-Day Warranty On Part
dimensions
28.0in x 18.0in x 16.0in
shipping_type
Freight
item_condition
Good
manufacturing_date
Does Not Apply

Product description

20 HP 3-phase TEFC motor, 1800 RPM, 230/460 V, reversible rotation, cast iron frame, inverter rated.

  • Output Power: 20 HP (14.9 kW)
  • Frequency: 60 Hz
  • Voltage: 230/460 V
  • Current: 48.5/24.2 A
  • Speed: 1768 RPM
  • Frame Size: 256T
  • Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
  • Rotation: Reversible
  • Mounting: Rigid Base (horizontal operation)
  • Shaft Diameter: 1.625 inches
  • Shaft Extension Length: 4 inches
  • Material: Cast Iron frame providing durability
  • Bearings: Ball bearings installed on both ends for smooth operation
  • Design: Squirrel cage, inverter rated for efficient line or inverter starting
  • Weight: 349.2 lbs (158.39 kg)
  • Shipping Dimensions: 33.6 in x 21.6 in x 19.2 in (85.34 cm x 54.86 cm x 48.77 cm)
  • Harmonized Code: 85015320 (AC motors with output exceeding 75 kW category applicability)
  • Warranty: 30-day parts warranty; unit shows cosmetic wear but fully operational
