Molecular Devices Axon 200B

Name: Molecular Devices Axon 200B
Brand: Molecular Devices
SKU: 69759
Availability: PreOrder

UsedMolecular DevicesAmplifiersNetherlands

Procurable

Not in stock, available to order through our sourcing team

Not in stock, but we can get it for you

We source this model through our supplier network. Request a quote and we'll come back within one hour.

Request a quote
We confirm price and lead time
You approve, we ship to you

Open-circuit noise in patch mode: <15 fA (RMS) at 0.1–1 kHz
Recording bandwidth: Up to 100 kHz
Active cooling headstage: Cools input components to well below 0°C
Capacitance compensation ranges: 100 pF and 1000 pF
Pipette holders: Two included, accepting glass pipettes in most standard dimensions
Availability: Procurable
Lead time: Confirmed with your quote

All 25 specifications

Ships to NL
Response within 1 hour
Warranty available. Buy without worry
Support from a scientist

Specifications 25

Brands: Molecular Devices
New/Used: Used
Open-circuit noise in patch mode: <15 fA (RMS) at 0.1–1 kHz
Recording bandwidth: Up to 100 kHz
Active cooling headstage: Cools input components to well below 0°C
Capacitance compensation ranges: 100 pF and 1000 pF
Pipette holders: Two included, accepting glass pipettes in most standard dimensions
Voltage command range: ±1 V
Current command range: ±200 nA
Power supply: 85–264 VAC (110–340 VDC), 50–60 Hz
Peak power consumption: 30 W
Fuse rating: 0.5 A slow (15 x 20 mm)
Line filter: RFI filter included

Line cord: Shielded line cord provided
Dimensions (L x W x H): 483 x 305 x 89 mm
Weight: 5.1 kg
Headstage dimensions (L x W x H): 107 x 18 x 19 mm
Mounting plate dimensions (L x W x H): 152 x 6 x 51 mm
Seal test modes: Current steps in current clamp mode and voltage steps in voltage clamp mode
Series resistance compensation: Active in both current clamp and voltage clamp modes
Series resistance compensation modes: Prediction and correction
Low-pass filter: 4-pole Bessel filter with five settings from 1 kHz up to 100 kHz
Panel meter: Displays user-selectable parameters in real time
Availability: Procurable
Lead time: Confirmed with your quote

Product description

Ultra-low noise patch clamp amplifier with active cooling and 100 kHz bandwidth for high-fidelity electrophysiology.

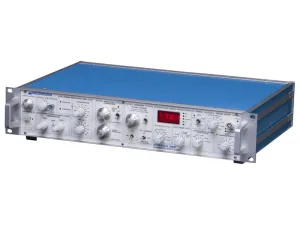

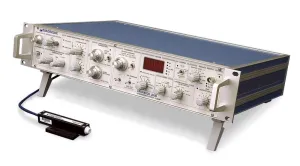

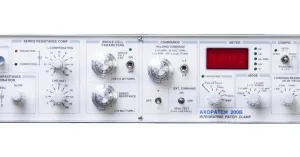

Axopatch™ 200B Capacitor Feedback Patch Clamp Amplifier

The Axopatch™ 200B is a premier patch-clamp amplifier designed for ultra-low-noise single-channel and whole-cell recordings. Incorporating innovative capacitor-feedback technology and active cooling, this amplifier delivers exceptional signal fidelity, making it indispensable for precise electrophysiological studies.

Key features:

Ultra-low noise performance: Achieves open-circuit noise levels as low as <15 fA (RMS) at 0.1–1 kHz, facilitating high-fidelity recordings.
Active cooling headstage: Cools input components to well below 0°C, significantly reducing thermal noise.
Versatile recording modes: Supports patch and whole-cell configurations with capacitance compensation ranges of 100 pF and 1000 pF.
Extended bandwidth: Offers recording bandwidth up to 100 kHz, capturing rapid electrophysiological events.
Slim headstage design: Enhances electrode access, facilitating integration with various microscope setups.

Applications:

Neuroscience: Investigating ion channel behaviour and synaptic transmission.
Cardiac physiology: Studying cardiac ion channels and arrhythmias.
Biotechnology: Essential for molecular cloning workflows and widely adopted in synthetic biology research.
Pharmacology: Assessing drug effects on ion channel activity.

Commonly used in:

University laboratories
Biomedical research centres
Pharmaceutical companies
Biotechnology firms

First released in the late 1990s, the Axopatch™ 200B remains a gold standard in patch-clamp electrophysiology, renowned for its unparalleled noise performance and versatility. Its continued relevance underscores its critical role in advancing research across multiple scientific disciplines.
