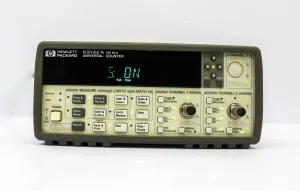

Hewlett Packard 53132A Universal Frequency Counter, 225 MHz, 12-digit resolution

UsedHewlett-PackardCountersUnited States

Sold

This item is sold

Our specialists can find you another one, the same model or a close equivalent, and send you a quote.

make
Hewlett Packard
hertz
50Hz/60Hz
voltage
120V
includes
Power cord included |
warranty
30-Day Warranty On Part
Availability
Sold
All 12 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 12

Brands
Hewlett-Packard
New/Used
Used
make
Hewlett Packard
hertz
50Hz/60Hz
weight
7.0 Lb
voltage
120V
includes
Power cord included |
warranty
30-Day Warranty On Part
dimensions
16.0in x 9.0in x 4.0in
shipping_type
FedEx Ground
item_condition
Very Good
manufacturing_date
Does Not Apply

Product description

High-precision universal frequency counter with 225 MHz bandwidth, 12-digit resolution, and GPIB/RS-232 interfaces.

The Hewlett Packard 53132A Universal Counter is a high-performance measuring instrument designed for precision frequency and time interval measurements with the following specifications:

  • Frequency resolution: 12 digits per second
  • Time interval resolution: 150 ps
  • Frequency range: DC to 225 MHz (standard), extendable via optional third channel to 3, 5, or 12.4 GHz
  • Channels: Two standard 225 MHz channels, optional third channel available
  • Input impedance: Selectable 50 ohm or 1 megohm, AC or DC coupled
  • Input sensitivity: 20 mVrms to 5 Vrms across frequency ranges
  • Dynamic range:
  • 20 mV to 5 VAC (DC to 100 MHz)
  • 30 mV to 5 VAC (100 to 200 MHz)
  • 40 mV to 5 VAC (200 to 225 MHz)
  • Time base accuracy: Standard 10 MHz oscillator with stability better than 3 × 10⁻⁷ per month
  • Interfaces: GPIB (IEEE-488) and RS-232 (talk only) for remote control and data acquisition
  • Power requirements: 100-120/220-240 VAC at 50/60 Hz
  • Weight: 3.81 kg (8.4 lb)
  • Dimensions: 48.77 cm × 27.43 cm × 12.19 cm (19.2 in × 10.8 in × 4.8 in)
  • Harmonized tariff code: 903031 (Oscilloscopes and oscillographs)

This unit is manufactured in the USA, is in very good operational condition, and includes a 30-day warranty.
